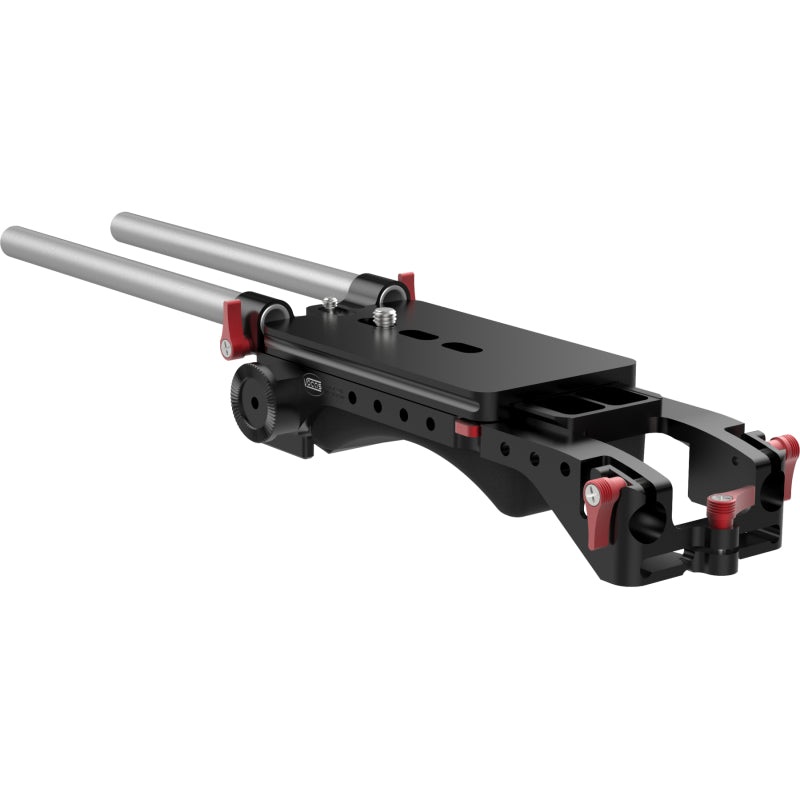

15 mm Universal shoulder base plate to convert RED cameras into a shoulder mounted camera. The USBP-15 MKII is a height adjustable shoulder base plate with a unique quick release balancing system to find optimal balance and stability with all kind of different lenses in combination with RED cameras.
The camera adapter plate when attached to the camera, provides the camera with a mini dovetail connection.
This allows the camera to slide on and off the various Vocas products that are based on this mini dovetail system, such as the Quick release dovetail plate (0350-2220).
Optional items for the USBP-15 MKII for RED:
– A shoulder pad wide (0350-2315) is available.
– The flat base plate for USBP-15 MKII (0350-2031) makes the USBP-15 MKII compatible with tripods with ENG wedge plates. Multiple 1/4 and 3/8 threaded holes are integrated on the bottom of this plate, giving options to mount any other tripod plate to this system.

Included in the box:
– USBP-15 MKII
– 15 mm Clamping block high for USBP-15 MKII (0350-2210)
– Camera adapter plate (0350-2250)
– Shoulder pad standard (0350-2310)
– 2x Aluminum 15 mm rail. Length; 210 mm. (0350-9210)

For RED Gemini; Helium; Monstro; Dragon-X; Weapon; Raven; Scarlet-W.

DESCRIPTION :
Rosette : 2 integrated
Shoulder pad : Adjustable, Interchangeable, Removable, Toolless
Shoulder pad size : Standard
Bars position : Front, Rear
Bars system : 15mm
Height adjustable : Yes
Camera mounting points : 2
VCT-14 quick release compatibility : Yes
Toolless VCT-14 rear adjustment : Yes
Material : Aluminium, Rubber
Color : Black
Weight (gr.) : 927
