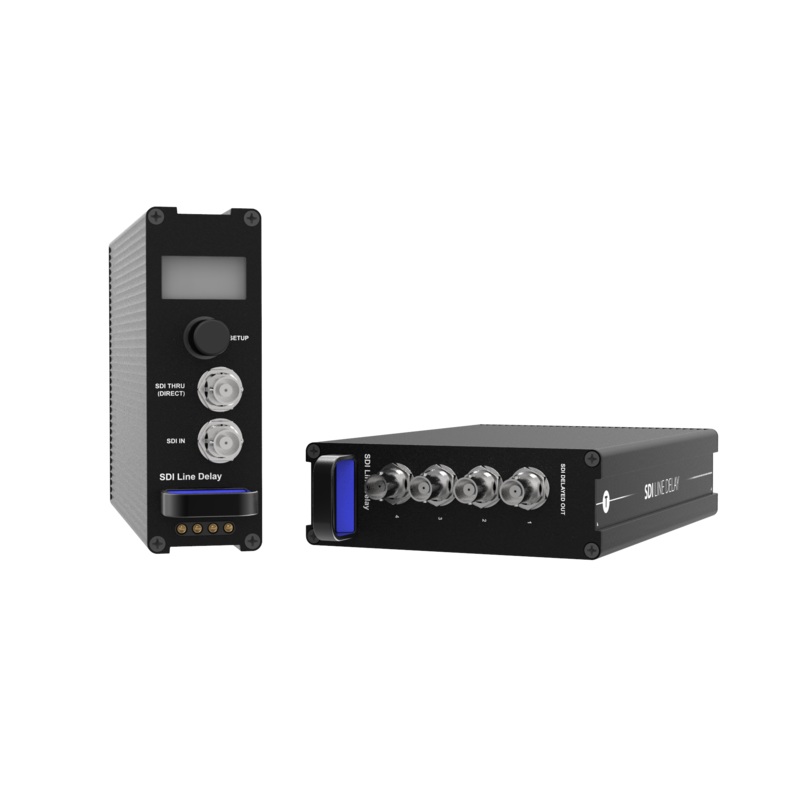

Theatrixx SDI Line Delay Reversible Module – XVVRM-SDIDLY

xVision Reversible HD 1:4 3G-SDI Line Delay Distribution Amp

The SDI Line Delay Rack Module is a unit option for the 8-Bay Reversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

FEATURES

• Reversible module for 8-bay 2U converter rack (sold separately)
• Video Input: 1 x 3G/HD/SD SDI BNC
• Loop-thru: 1 x 3G/HD/SD SDI BNC (no delay)
• Video Output: 4 x 3G/HD/SD SDI BNC (delayed & mirrored)
• Supports up to HD Formats
• Embedded Audio: Up to 16 channels, 24bit, 48kHz

SPECIFICATIONS

Connections

• Video Input: 1 x 3G/HD/SD SDI BNC
• Loop-thru: 1 x 3G/HD/SD SDI BNC (no delay)
• Video Output: 4 x 3G/HD/SD SDI BNC (delayed & mirrored)

Processing

• Maximum Delay: 160 frames (2690ms @ 60Hz)
• Delayed Elements: Entire SDI payload, including audio & meta
• Adjustment: By the frame or by the millisecond, using onboard OLED display and rotary wheel

Supported Signals

• 3G Format Support: 19201080p @ 60/50 fps
• HD Format Support:
• 19201080p @ 30/25/24fps,
• 19201080i @ 60/50fps,
• 1280720 p @ 60/50 fps,
• 1280720 i @ 60/50 fps,
• 1280720p @ 30/25/24 fps
• SD Format Support: 720480i @ 60fps, 720576i @ 50fps
• Embedded Audio: Up to 16 channels, 24bit, 48kHz
• SMPTE Standards: ST425M Level A & B, ST424M, ST292M, ST259M

Environmental Specifications

• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 C

Power Requirements

• Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
• Power Consumption: 20W
• Voltage Range: 12VDC

Physical and Dimensions

• Height: 121.5mm (4.78in)
• Depth: 225mm (8.85in)
• Width: 41mm (1.61in)
• Weight: 710g (1.56lbs)
