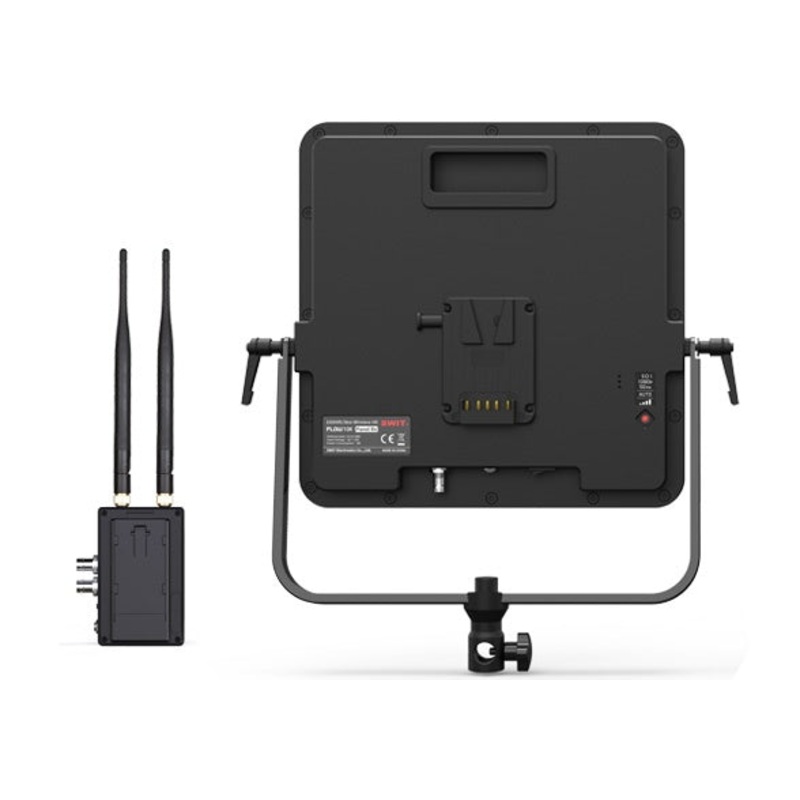

Wireless Transmitter & Receiver Panel
HDMI & SDI TX Input, RX SDI Output
Up to 1080p Video, Multicast Support
Transmit up to 10,000′ Line-of-Sight

###split###

The FLOW10K Pro Wireless 1080p Video Transmission System from SWIT features the latest professional KUWI wireless technology, 5.1 to 5.9 GHz license-free bands, DFS compliance, and 3G/HD-SDI and HDMI I/O to transmit up to 1080p video up to a 10,000′ line-of-sight distance.

SWIT’s KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability.

The long-distance wireless connectivity can be widely used in film production, event broadcasting, etc.

###split###

SWIT FLOW10K Specs:
I/O
Antenna Ports Transmitter: 2 x RP-SMA Female
Video Transmitter: 1 x HDMI Type A Input
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 1 x BNC (3G-SDI) Output
HDCP Support Not Specified by Manufacturer
Embedded Audio HDMI/SDI/Wireless
Audio None

Power Transmitter/Receiver: 1 x Barrel (34 VDC) Input

Wireless
Wireless Range 10,000′ / 3048 m
Frequency Range DFS Frequencies
5180 to 5220 MHz
5760 to 5820 MHz
Wi-Fi None

Format Support
Video Format HDMI/SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format Not Specified by Manufacturer
Timecode Support Yes

Power
DC Input Power 7 to 34 VDC
Battery Type Transmitter: 1 x L-Series
Receiver: 1 x V-Mount
Power Consumption Transmitter/Receiver: 9 W

Mounting
Mounting 1 x 1/4″-20 Female
1 x Cold Shoe
Environmental
IP Rating None
Operating Temperature 32 to 104F / 0 to 40C

General
Dimensions Transmitter: 4.2 x 2.6 x 1″ / 106.5 x 66 x 24.7 mm
Receiver: 7.5 x 7.5 x 1.8″ / 190 x 190 x 46 mm
Weight Transmitter: 10.1 oz / 286 g
Receiver: 3.3 lb / 1500 g
