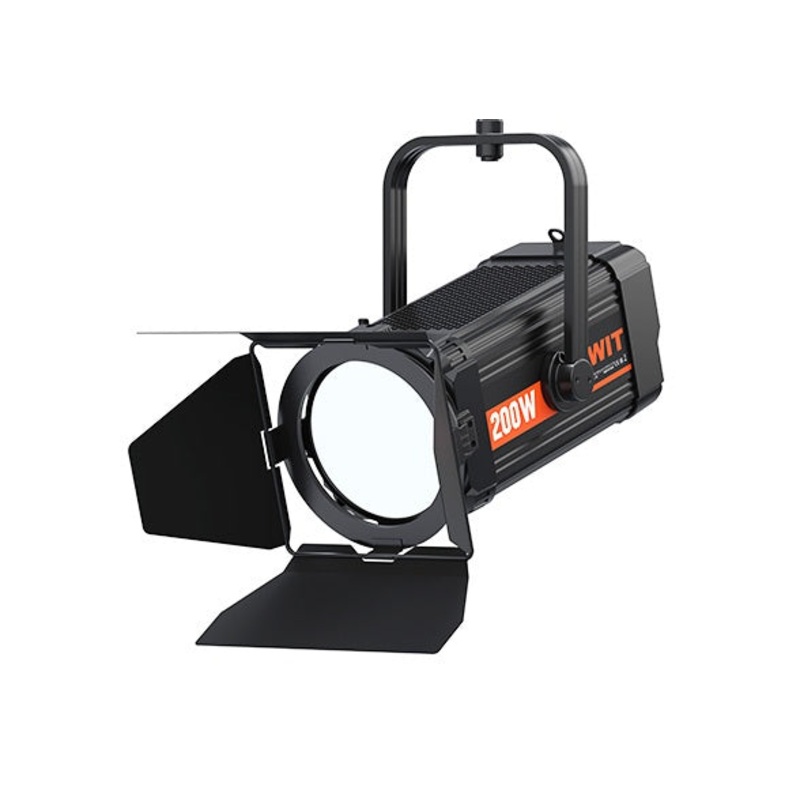

200W COB-LED Fresnel Light
High intensity 65,000Lux @ 1m

FL-C200D is a 200W Bi-color COB-LED fresnel light, 65,000Lux @1m high bright, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, theatre, film set install applications

###split###

200W COB LED Fresnel studio light
15-50 Flood/Spot angle adjust
Optional E-motor adjust spot angle by DMX
65,000Lux@1m high bright hard light
Fresnel and Fly’s eye compound lens
2700K-6500K continuously adjust
0-100% flick-free dimming
Preset simulated light effects
CRI Ra 97, TLCI 99, SSI(D55)75
DMX512 In & out dimmer control
Dimmer/Color Temp/Fan off DMX addresses
USB power out for wireless DMX receiver
LCD display menu operation system
PowerCON TRUE1 AC in and loop out
4-leaf metal barn doors and Yoke bracket

###split###

200W COB-LED Fresnel Light

High intensity 65,000Lux @ 1m

FL-C200D is a 200W Bi-color COB-LED fresnel light, 65,000Lux @1m high bright, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, theatre, film set install applications.

[Continued below the image]

15-50 Spot/Flood Adjust

FL-C200D outputs 15-50 beam angle by adjusting position of LED board internally, and supports optional E-motor to adjust spot angle by DMX. 0 to 100% PWM digital dimming, smoothly and non-flickering.

[Continued below the image]

2700K-6500K Continuous

FL-C200D COB-LED includes 200W 2700K and 200W 6500K LED, and can be continuously adjusted between 2700K and 6500K. The light outputs 200W high intensity at any color temperature.

[Continued below the image]

DMX, AC IN & LOOP

FL-C200D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver, and support PowerCon True1 AC input and loop output for easy cable works when building studio.

[Continued below the image]

Menu operating System

[Continued below the image]

Optional Spot Angle E-motor

FL-C200D supports external electro-motor installed to adjust the spot/flood angle by Menu knob or by DMX control. The optional E-motor is easily user installed (Part number LA-M50).
You can also order the light with factory pre-installed E-motor, SKU model FL-C200DM.

[Continued below the image]

4-leaf Metal Barn Door

FL-C200D is equipped with 4-leaf metal barn doors, dismountable and rotatable.

[Continued below the image]

Optional Diffuser Box

Provide Octangle Diffuser Box as optional accessory. Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc, with dual diffuser layers and eggcrate.

Part Number: LA-BC90.

[Continued below the image]

###split###

LED COB Chip-on-board LED
Spot angle 15 – 50 adjust
Illuminance 65,000Lux@1m/Spot
Color Temperature 2700K – 6500K
CRI 97
TLCI 99

Power 200W

USB 5V USB-A power out

DMX DMX512, 5pin XLR IN & OUT
AC Power PowerCON TRUE1 AC 100-240V 50/60Hz input & output
Dimension 175175400mm
Weight 6.2kg
