- aktiv10 Sideload Fluid Head
- flowtech 100 Tripod, Mid Spreader & Bag
- SpeedSwap Clamp-Style Base
- SpeedLevel Technology
###split###

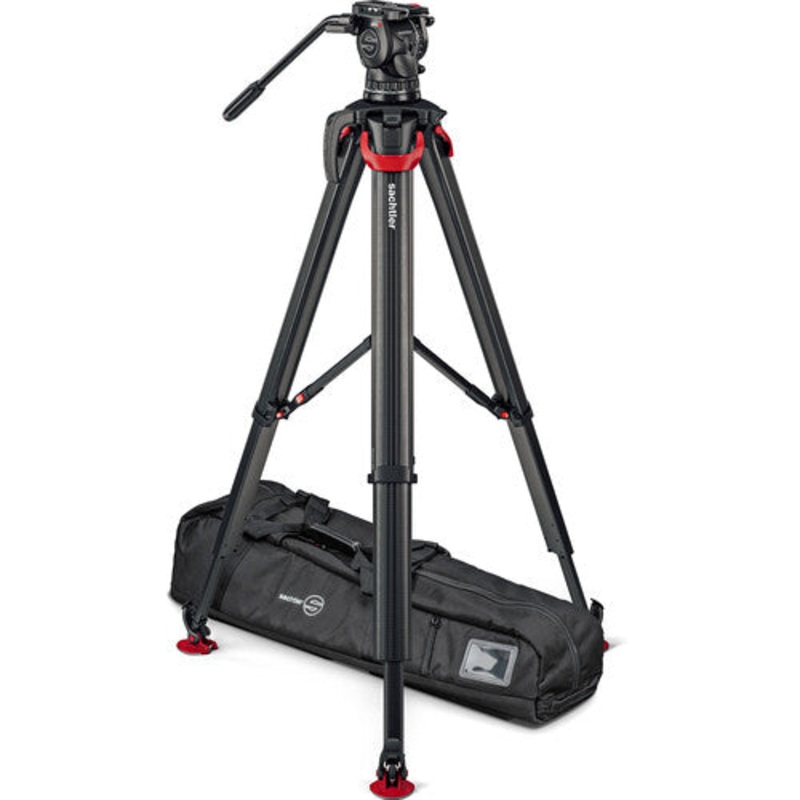

Theaktiv10 flowtech 100 MS Tripod SystemfromSachtlerpairs the activ10 fluid head with the lightweight, carbon fiber flowtech 100 MS tripod with mid-level spreader.
This kit offers lightning fast SpeedSwap technology, a sideload camera plate, 15 levels (+0) of counterbalance, 7 levels (+0) of pan and tilt drag, and stable support for camera rigs weighing up to 26.5 lb. A padded carrying bag rounds out this tripod kit.
Theaktiv10 Sideload Fluid HeadusesSachtler‘s truly innovative SpeedLevel technology to provide almost instant mounting and leveling of your camera rig on Sachtler 100mm tripod legs.
The clamp and stud SpeedLevel system saves precious time leveling your camera rig by eliminating the need to screw on a tie-down knob.
Designed for documentary, news, and corporate production, the aktiv10 supports camera rigs weighing up to 26.5 pounds. This 100mm ball fluid head also features 15 steps of counterbalance, seven steps of pan and tilt drag, and zero settings for both balance and drag.
###split###
Camera Plate
| Camera Plate Features |
Sideload, Sliding Balance Plate |
| Camera Plate Type |
Sideload Plate S |
| Camera Mounting Screw |
1 x1/4″-20 Male with Locating Pin |
| Balance Plate Sliding Range |
4.7″ / 120mm |
| Safety Lock |
Yes |
| Plate Dimensions |
5.5 x 2″ / 140 x 50mm |
Head
| Base Mount |
100 mm Half Ball Sachtler SpeedSwap |
| Counter Balance |
Continuous 15-Step Plus 0 |
| Pan Handle Fittings |
2 xRosette |
| Included Pan Handle Length |
16.9″ / 430mm |
| Bubble Level |
1 xIlluminated |
Pan & Tilt
| Drag Control |
Pan: Stepped 7-Step Plus 0 Tilt: Stepped 7-Step Plus 0 |
| Drag Type |
Fluid |
| Vertical Tilt |
+90 to -70 |
| Panning Range |
360 |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
General
| Load Capacity |
0 to 26.5lb / 0 to 12kg |
| Operating Temperature |
-8 to 92F / -40 to 60C |
| Weight |
6.4lb / 2.9kg |
Packaging Info
| Package Weight |
9.5 lb |
| Box Dimensions (LxWxH) |
18 x 14.5 x 14″ |
Sachtler Flowtech 100 MS Carbon Fiber Tripod With Mid-Level Spreader & Rubber FeetSpecs
General
| Head Mount Type |
100 mm Bowl |
| Maximum Working Height |
61.02″ / 155cm (with Spreader) 60.24″ / 153cm (without Spreader) |
| Minimum Working Height |
20.47″ / 52cm (with Spreader) 10.24″ / 26cm (without Spreader) |
| Closed Length |
26.8″ / 68cm |
| Materials |
Carbon Fiber |
| Weight |
9.04lb / 4.1kg |
Legs
| Leg Lock Type |
Flip Lock |
| Leg Positions |
Locking 3 Positions and Continuously Adjustable |
| Independent Leg Spread |
Yes |
| Leg Sections |
3 |
| Feet Features |
Rubber, Removable, Dual Spiked |
| Spreader |
Mid-Level |
Packaging Info
| Package Weight |
13.5 lb |
| Box Dimensions (LxWxH) |
28.5 x 7.4 x 7.1″ |
Sachtler ENG 2 Padded BagSpecs
| Carrying/Transport Options |
Connecting Handles, Shoulder Strap |
| Type of Closure |
Zipper |
| Exterior Material |
Cordura, Nylon |
| Padded |
Yes |
| Interior Dimensions |
H: 7.9 x W: 8.5 x L: 35.4″ / H: 20.1 x W: 21.6 x L: 89.9cm |
| Weight |
3.6lb / 1.6kg |
Packaging Info
| Package Weight |
5.6 lb |
| Box Dimensions (LxWxH) |
39 x 12 x 5″ |
