Short DescriptionSwitch up to Four 1080p60 Video Signals
1080p USB/HDMI Input, HDMI 2.0 Output
NDI 5.0/HDMI Output up to UHD 4K60
Integrated 5.5″ 1920 x 1080 Touchscreen
USB 2.0 Recording Output, UVC Support
RJ45 Port for LAN/Streaming
Up to Four Simultaneous Streams
Bluetooth 5.0 Support for PTZ Control
L-Series Battery Plate

In The BoxRGBlink TAO 1pro HDMI/USB/NDI Video Switcher
Power Adapter
USB 3.0 Type-A Cable
Limited 1-Year Seller Warranty

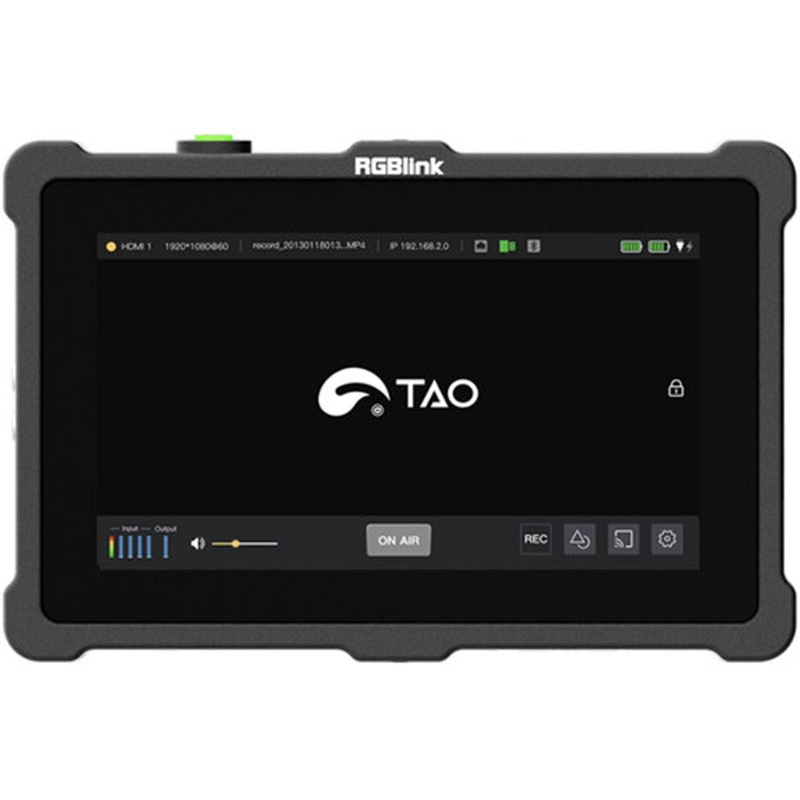

Long DescriptionSwitch, stream, and record HD video for live broadcasts with the TAO 1pro HDMI/USB/NDI Video Switcher from RGBlink. This portable livestreaming switcher features two HDMI 1.3 and two USB 3.0 inputs for a variety of cameras up to 1080p60 resolution, an HDMI 2.0 monitor output, and the RJ45 Ethernet port lets you simultaneously stream to up to four streaming platforms, such as OBS and YouTube Live. It also features an NDI 5.0 encoder, so you can stream high-quality video with up to UHD 4K60 resolution on an NDI network. A USB 2.0 Type-A output is also included to record your program onto a separately available USB drive.

You can monitor and switch all four inputs via the built-in 5.5″ 1920 x 1080 touchscreen TFT LCD screen. You can also connect to RGBlink Bluetooth-enabled PTZ cameras for control using a Bluetooth controller. You can also utilize 3.5mm audio input and output ports to embed an independent mic signal and extract HDMI audio to external speakers or an audio mixer. The switcher is powered using the included USB Type-C cable and power adapter or with an optional L-series battery using the built-in plate. A 1/4″-20 screw adapter allows you to mount the switch.

Key Features
5.5″ 1920 x 1080 touchscreen operation
Seamless switching
NDI 5.0 encoder
Multistream to up to four live streaming platforms simultaneously
Two USB Type-A UVC inputs, two HDMI 1.3 inputs, and one HDMI 2.0 output
Recording via USB 2.0 port for mobile hard disk stores up to 2TB
L-series battery plate
Bluetooth 5.0 support for control of Bluetooth-enabled RGBlink PTZ cameras
Image tools such as oscilloscope, vectorscope, and histogram
