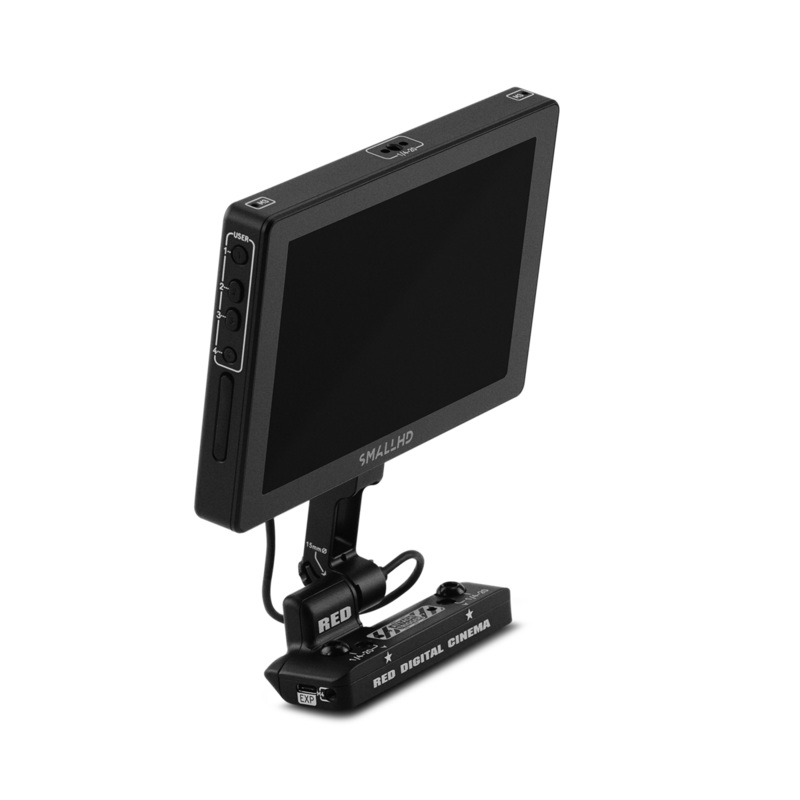

The DSMC3 REDTouch 7.0in LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTORcamera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P3 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom & more.

The lightweight display features a removable integrated tilt arm with the capability to rate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.

NOTE:The DSMC3 RED Touch 7.0in LCD is not compatible with DSMC, DSMC2, RED RANGERor KOMODOcamera systems.
