Description

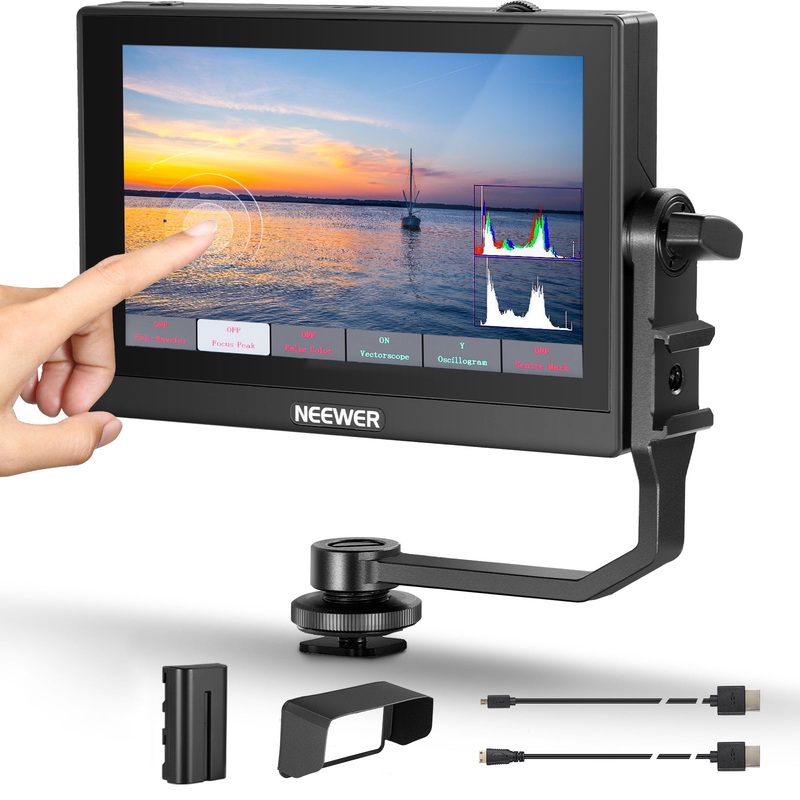

• 160 Wide Viewing Angle, Crisp Touch Screen– This 5.5″ HD IPS display features durable, impact-resistant glass for easy touch control (can be disabled to prevent accidental taps). 1920×1080 resolution, 410cd/m2 brightness, 1000:1 contrast ratio, and a removable sunshade to reduce glare outdoors. The 160 ultra-wide viewing enhances detail clarity, while the 360 rotatable L bracket with cold shoe and 1/4″ thread supports various accessories, DSLRs, or stabilizers
• Custom 3D LUT Upload– Featuring a 3D LUT function that converts S-LOG-1, V-LOG-1, DJI-LOG-1, RED-LOG-1, and others into REC-709 standards, and ensures high dynamic HDR monitoring without color cast. Also includes preloaded HLG 2020, HLG 709, and HLG P3 HDR LUT tables for ease of use, and supports uploading up to 25 custom 3D LUT tables via SD card (not included)
• 4K HDMI Loop In & Out– Enjoy real-time monitoring without compromising the video quality, and share live screen across larger monitors or projectors without delay, ideal for directors, photographers, and other “visual captains”. Supports HDMI input of 4K UHD 3840X2160p (30/29.97/25/24/23.98Hz), 4096X2160p (24Hz), and 480i/480p/576i/576p/720p/1080i /1080p. Also supports simultaneous audio monitoring via a 3.5mm headphone jack (headphones not included)
• Professional & Versatile Monitoring– Supports Full Waveform, Oscillogram(RGB/YUV/Y), Vectorscope, Brightness Histogram, Peak Focus (1-10, red/green/blue/white/yellow), Audio Bar, Zebras, Single Color, False Color, Nine Grid, Deformation Mode, Magnification, Auto Mirror, Point To Point, Center Mark, Safety Marking, Cropping Mark, and more. Supports SD card (not included) firmware updates by downloading the latest version from NEEWER official website
• Multiple Power Supply Options– Powered either by the built-in USB-C 5V port,? the included NP-F550 replacement battery and charger (also compatible with Sony NP-F550 F750 F970 Canon E6 batteries), or via a DC 12V power adapter (sold separately). Supports reverse charging with DC OUT 8.4V for cameras via a dummy battery adapter power cable (not included). At just 9oz/256g, it is portable enough for handheld or mobile shooting on the go
• More From NEEWER–Please consider our MA006 MA002 Camera Monitor Mount with Cold Shoe & 1/4″ Screw, ST25C Magic Arm and Super Clamp Set, PS099E 6800mAh V Mount Battery and NC010 D Tap to DC Power Cord for outdoor power supply, and TP74 TP75 Professional Video Tripod with Fluid Head for stable mounting. Also choose our camera cages CA011 for Sony FX3 FX30 CA031 for Canon R50 CA041 for Nikon Z8 CA014 for Fujifilm X-T5 to enhance your filmmaking and video recording

Specifications

• Model: F500
• Resolution: 1920 x 1080 pixels
• Dot Pitch: 0.069(H) x 0.069 (V) mm
• Aspect Ratio: 16:9
• Brightness: 410nits10%
• Contrast: 1000:1
• Viewing Angles: 80/80 (L/R) 80/80(U/D)
• Input: HDMI
• Output: HDMI/3.5mm Headphone Output
• Power Input: DC IN 12V 2A, 5V 2A
• Power Output: DC OUT 8.4V (4.0mm outer&1.3mm inner diameter, for DSLR or mirrorless cameras)
• HDMI Input Format: 480i/480p/576i/576p/720p(60/59.94/50/30/29/25/24/23.98)1080i(60/59.94/50)1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sf/4K UHD 3840X2160p(30/29.97/25/24/23.98)/4096X2160p (24Hz)
• Overall Power Consumption: 8W (without 8.4V DC output)
• Operating Temperature: ?-10C-55C
• Storage Temperature: -30C-65C
• Dimensions: 5.55″x3.7″x0.94″/141x94x24mm
• Weight: 9oz/256g

Package Contents

F500 with Battery

• 1 x F500 Monitor
• 1 x Sunshade Hood
• 1 x Sunshade Frame
• 1 x Shaped Bracket
• 1 x NP-F550 Replacement Battery
• 1 x HDMI to Mini HDMI Cable
• 1 x HDMI to Micro HDMI Cable
• 1 x Cleaning Cloth
• 1 x User Manual

F500

• 1 x F500 Monitor
• 1 x Sunshade Hood
• 1 x Sunshade Frame
• 1 x L Shaped Bracket
• 1 x HDMI to Mini HDMI Cable
• 1 x HDMI to Micro HDMI Cable
• 1 x Cleaning Cloth
• 1 x User Manual
