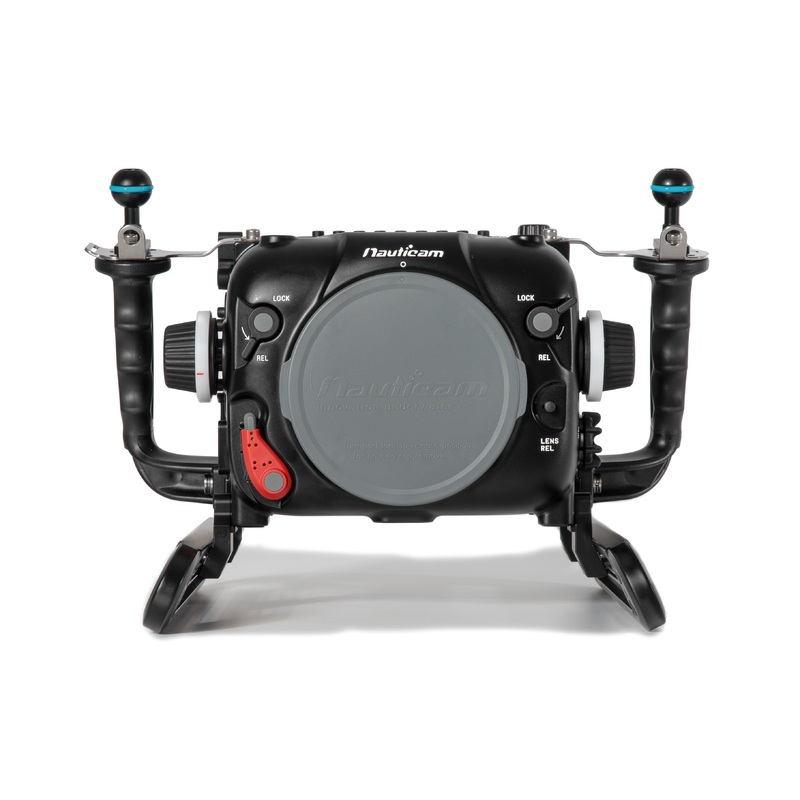

Nauticam Raptor Underwater Housing for RED Digital Cinema V-Raptor 8K VV
Technical Specifications:Dimensions269mm x 175mm x 294mm (W x H x D)Depth Rating80mWeight in air4.9kgWeight in waternegative 1kg (includes camera and bebob V200MICRO battery)Port OpeningN120splitThe NauticamRaptor HousingThe housing supports both the RED V
Technical Specifications:
| Dimensions | 269mm x 175mm x 294mm (W x H x D) |
| Depth Rating | 80m |
| Weight in air | 4.9kg |
| Weight in water | negative 1kg (includes camera and bebob V200MICRO battery) |
| Port Opening | N120 |
split
The NauticamRaptor Housing
The housing supports both the RED V-RAPTOR8K VV and the RED KOMODO through an optional tray (16250). It isengineered in a similar fashion to previous DSMC2 LT and Komodo housings, providing the most compact and travel friendly system possible.
TheNauticamRaptor housing uses the N120 Cinema port system, shared with Nauticam’s otherN120 platform cameras which allows for easy transition to theNauticam Raptor from otherN120 Nauticam systems. The N120 system also provides access to Nauticam’s line of professional premium optics such as the WACP-1/2 and SMC-1/2.
In addition to Nauticam’s traditional full mechanicalcontrol, the Raptor housing also integrates a series of electronic controls with backlighting. These controls can access Iris+/-, Shut+/-, ISO+/-, WB on the left side of the housing and Pre-Record, FPS+/-, Playback, Play/Pause, Magnify and Tools on the top of the housing.
LensSupport
The REDV-RAPTOR 8K features a Canon RF lens mount, but Canon EF lenses are also supported through the Canon EF to EOS R Adaptor. The NauticamRaptor housing offers full support of Canon RF lenses along with the Canon EF to EOS R adaptorand the Canon EF to EOS R Adaptor with Variable ND Filter or Control Ring.
Internal Monitor Support
In additional to the large window for viewing the Raptor’s 2.4″ LCD screen, Nauticam offers an optional rear housing back for the Portkeys BM5WR monitor (16610). This allows the monitor to be viewed by the camera operator from a natural filming position and provides an extremely streamlined system. The monitor back features control buttons to access the various tools offered by the BM5WR.
External Monitor Support
TheSmallHD 503 Ultrabrightor theAtomos Ninja V monitorcan be mounted in the externalNauticam NA-503-SorNauticam Atomos Ninja V-Shousingsand be connected via SDI bulkheads and cables allowing greater flexibility when positioning the monitor on the NauticamRaptor housing.
SDI Output
Required accessories forSDI Cable System
- 25058M16 SDI Bulkhead
- 25060SDI Cable in 0.3m Length
Recommended monitor housing
- 17925SNauticam NA-503-S Housing for Small HD 503 Ultrabright (SDI Cables and bulkhead are included)
- 17922SNauticam Atomos Ninja V-S Housing (SDI Cables and Bulkhead are sold separately)
BatteryCompatibility
- REDVOLT Micro-V 98Wh
- Anton Bauer Titon Micro V-Mount 45Wh/98Wh/140Wh
- bebob V-MICRO 45Wh/98Wh/150Wh/200Wh
- Core SWX NANO Micro 98Wh/147Wh Lithium-Ion Battery (V-Mount)
- Fxlion NANO ONE/TWO Ultra Compact 50Wh/98Wh
- Hawk-Woods Mini V-Lok 14.4V 98Wh/150Wh Li-Ion Battery
- IDX System Technology Imicro-150 14.5V 97Wh/145Wh Li-Ion V mount battery
- SWIT PB-M98S 14.4V 98Wh Pocket Battery with D-Tap and USB Output (V-Mount)
Ethernet Remote Control
While the NauticamRaptor housing is engineered to allow for full control by the operator, it also supports an ethernet surface feed in 5m (pole cam) and 45m (studio) lengths.Within the housing, there is space to install aUSB-C to Ethernet adaptor which would allow for full control of the camera at the surface through the RedControl App.
Recommended Ethernet Cables
- 16261Ethernet Surface Cable Set in 45m length (Incl. housing lemo bulkhead with integrated internal cable and external Duracell cables)
- 16262Replacement of Housing Lemo Bulkhead with Integrated Ethernet Cable
- 16263Ethernet Surface Cable Set in 5 meter length (Incl. housing lemo bulkhead with integrated internal cable and external Duracell cables)
resources
What’s In The Box:
- RaptorHousing
- 25625 M16 Vacuum Valve II
- 90121 Housing O-ring, lubricant, O-ring remover
- 2x Handles with mounting balls
- CR2032 Battery (for moisture alarm and vacuum system)
- Allen Wrench Set
- Housing Skids
- Wheeled Case with Custom fit foam insert
- 2x 0.25kg Trim Weights
- 2x 0.5kg Trim Weights
PDF Manual Download forNauticamRaptor Coming Soon
Recommended Accessories:
- 16610Nauticam PBM5III WR Rear Housing for 16120
- 16250Komodo Camera Tray to use with 16120
- 17959Housing Mounting Ball with 1/4” Screws
- 16701Top Handle for E2/F/C70/BMPCC/KOMODO/RAPTOR
- 16226Mounting Bracket for Monitor Housing from A521407
- 25221M10 Strobe Mounting Ball for Housing
- 162320.25kg Trim Weights for 16227
- 162330.5kg Trim Weights for 16227
- 16410N120 to N200 Port Adaptor for Epic/Weapon LT Housings
