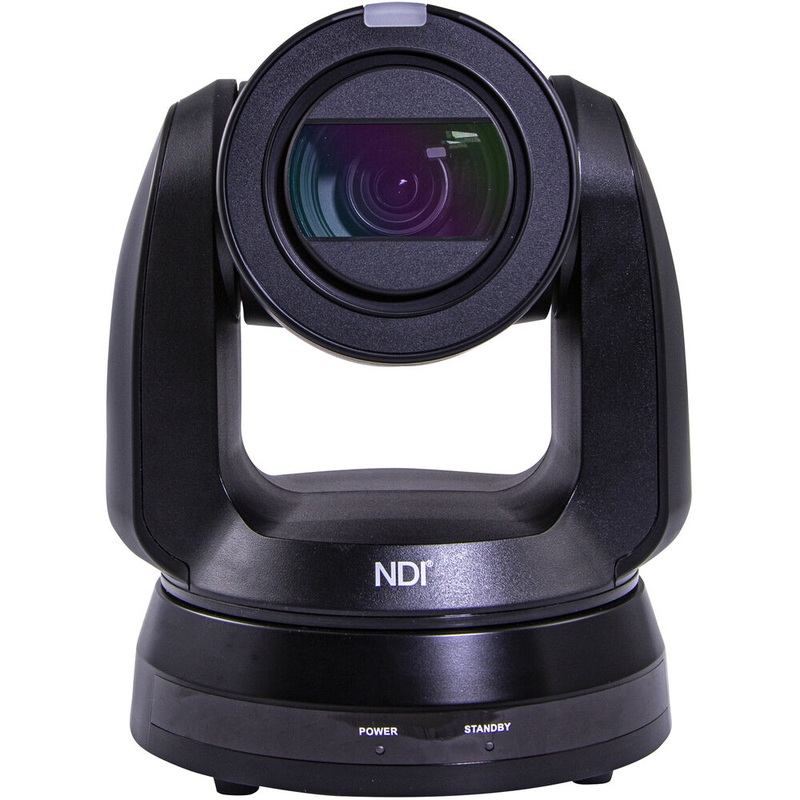

Marshall Electronics CV730-BHN 4K (UHD60) FULL NDI PTZ Camera 30x Zoom Lens Full NDI 12G-SDI & HDMI (Black)

4K (UHD60) NDI PTZ Camera with 6.5mm-202mm 30x Zoom Lens 12G-SDI, HDMI, IP, Full NDI, NDI|HX3 & USB 3.0 Outputs

Introducing the ultimate4K60 PTZ camera in the market today, the CV730-BHN and CV730-WHN are full-NDI compatible cameras. These cameras are designed to accommodate broadcast production facilities looking to produce high-impact content with less staff on-site and sometimes limited access or bandwidth.

CV730-BHN (Black)
3840x2160p @ 25, 29.97, 50 & 59.94 / 1920x1080p @ 25, 29.97, 30, 50 & 59.94 / 1920x1080i @ 50 & 59.94 / 1280720 @ 25, 29.97, 50 & 59.94

FEATURES
12G-SDI, HDMI, IP Ethernet, full NDI or NDI|HX3 & USB 3.0 outputs
30x optical zoom (6.5mm to 202mm)
Smart Auto-Focus AI System ensures faces and eyes stay in focus at all times
Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
3.5mm audio input for external microphone

CV730-BHN/WHN is Marshalls top-range full NDI PTZ camera, capturing sharp UHD video at up to 60p.

Full NDI delivers the lowest latency, highest quality, and frame-accurate video, and audio in real-time to IP workflows. NDI5.5 and other NDI Tools open the ability to integrate more video devices and applications into your production workflow. Also, the ability to Genlock the SDI signals via Black Burst or Tri-Level Sync and optional USB 3.0 workflow.

Features 3G-SDI, 12G-SDI, HDMI2.0, USB-3.0, IP ethernet and NDI from a Sony Exmor 9.2MP 1/1.8 UHD sensor and smooth synchronous movements. CV730-BHN/WHN delivers crystal-clear images up to 3840x2160p at 60fps. NDI|HX3 provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control.

Constructed with a precision 30x optical zoom range starting at just under 65 horizontal angle-of-view at 6.5mm out to 202mm which captures a crystal clear head & shoulder shot at very long distances.

CV730-BHN/WHN offers easy control over broadcast settings from NDI Tools such as NDI Studio Monitor, which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV730-BHN/WHN is compatible with RS-422, RS-232 and Marshalls VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.

SPECIFICATIONS

WHAT’S IN THE BOX

• 1x Marshall CV730-BHN/WHN PTZ Camera Body
• 1x IR Remote Control
• 1x Power Supply Unit (PSU)
• 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
• 1x Metal Installation Plate A
• 1x Metal Installation Plate B
• 1x Set of M3 Screws
