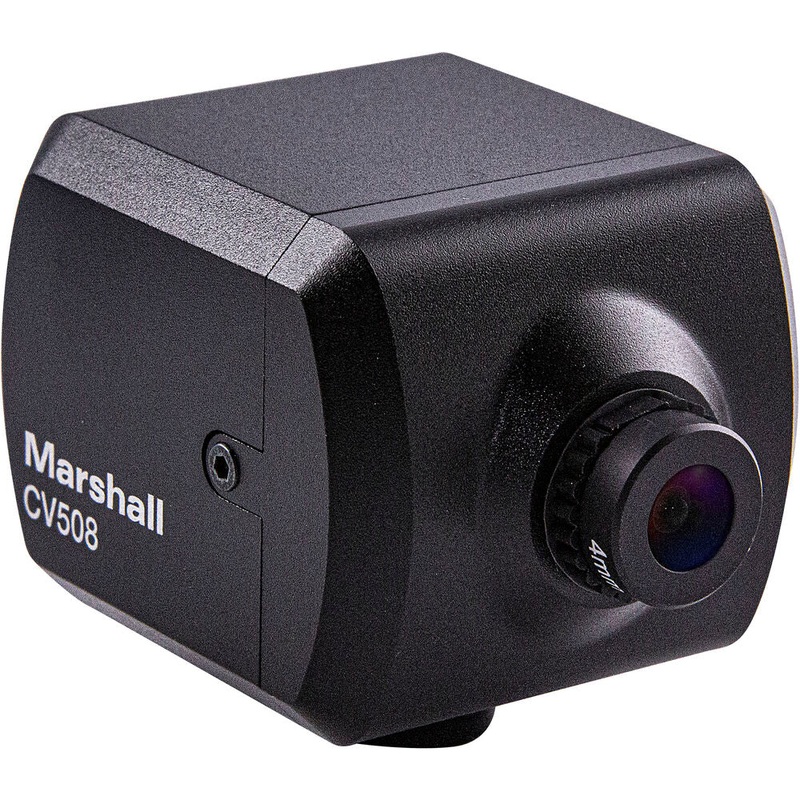

Marshall Electronics CV508 Mini Broadcast Camera with 4.0mm Interchangeable Lens 3G-SDI & HDMI Outputs

CV508
1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60

FEATURES
Ultra-compact camera measuring just 40mm x 44mm x 45mm
M12 interchangeable lens mount
4.0mm M12 lens included
3G-SDI & HDMI video output connectors
1/2.8 2.2 megapixel sensor
19201080 up-to 60P
I/O breakout cable with control joystick
3.5mm audio input

The Marshall CV508 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next-generation 2.2-megapixel, 1/2.8-inch sensor, the CV508 delivers ultra-crisp, clear, full-HD video in both interlaced and progressive modes at up to 60/59/50fps.

The CV508 utilises full-sized BNC (3G/HDSDI) and HDMI outputs on the rear panel and a locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV508s threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV508 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on the locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

SPECIFICATIONS

WHAT’S IN THE BOX

• 1x Marshall CV508 Camera Body
• 1x Camera Breakout Cable
• 1x 4.0mm M12 Lens
• 1x Power Supply Unit (PSU)
