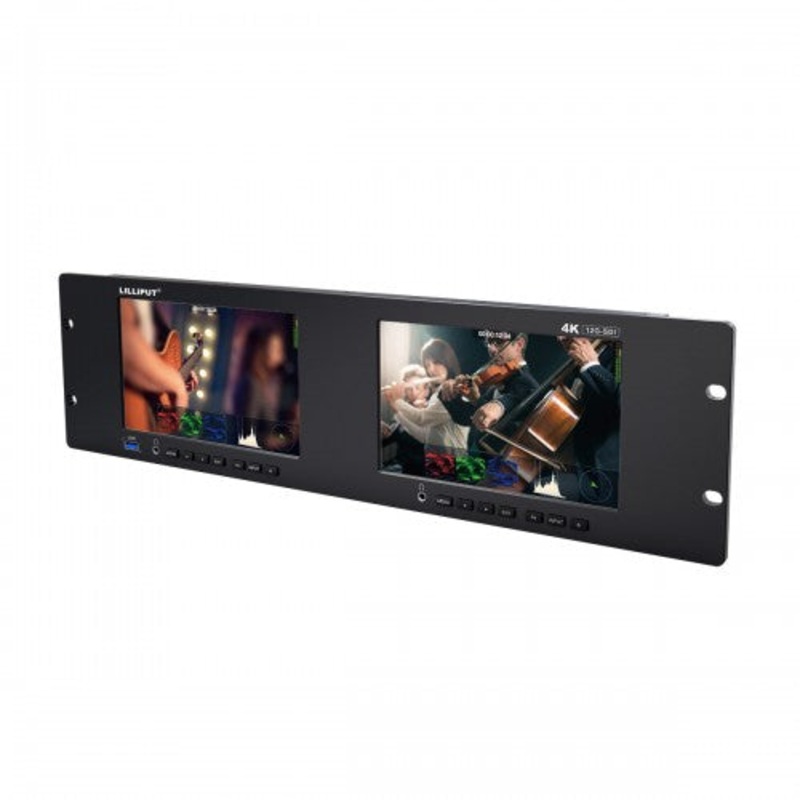

Lilliput RM-7026-12G 7-inch HDMI/12G-SDI 2x Panel 3U Rack-Mountable Monitor with Daisy-Chain Remote Control
The RM7026-12G is a High Brightness, High Quality Dual Panel Monitor which supports HDMI 2.0 and 12G SDI input and output. Sporting dual 7 1000 nits high brightness LTPS screens, the unit has support for up to 2160p (4K) at 60Hz and can monitor 2 independent input sources, which makes it ideal for installation into broadcast mixing rooms or Outside Broadcast vehicles.
Video can be looped in and out of the RM-7026, and it can also be controlled by a connected computer, which will allow you to run the monitor independently and as a part of an integrated video production workflow.
SPECIFICATIONS
| Display |
| Aspect Ratio |
16:10 |
| Brightness |
1000 nits |
| Contrast Ratio |
1200:1 |
| Display Screen |
2 x 7″ LPTS Panels |
| Resolution |
1920 x 1200 px |
| Viewing Angle |
160 / 160 H/V |
| HDR |
HLG; ST2084 300 / 1000 / 10000 |
| Connections |
| HDMI Video Input |
1x HDMI 2.0 |
| SDI Video Input |
1x SDI (12G) |
| SDI Video Output |
1x SDI (12G) |
| HDMI Video Output |
1x HDMI 2.0 |
| Audio |
| Audio Channel |
HDMI – 8 Channel : SDI – 16 Channel |
| Ear Jack |
3.5mm – 2ch 48KHz 24 Bit |
| Speaker |
N/A |
| Formats |
| SDI / HDMI Output Format Support |
12G 2160p – 24 / 25/ 30 / 50 / 60 : 1080p – 24 / 25 / 30 / 50 / 60, 720p 24 / 25 / 30 / 50 / 60 |
| HDMI Formats |
2160p – 24 / 25/ 30 / 50 / 60 : 1080p – 24 / 25 / 30 / 50 / 60, 720p 24 / 25 / 30 / 50 / 60 |
| Size |
| Dimensions |
480mm x 131.6mm x 32.5mm |
| Weight |
1.83kg |
| Power |
| Input Voltage |
DC 12-24V |
| Power Consumption |
<=21W (12V) |
| Environment |
| Operating Temperature |
0c to 50 c |
| Storage Temperature |
-20 to 60c |
