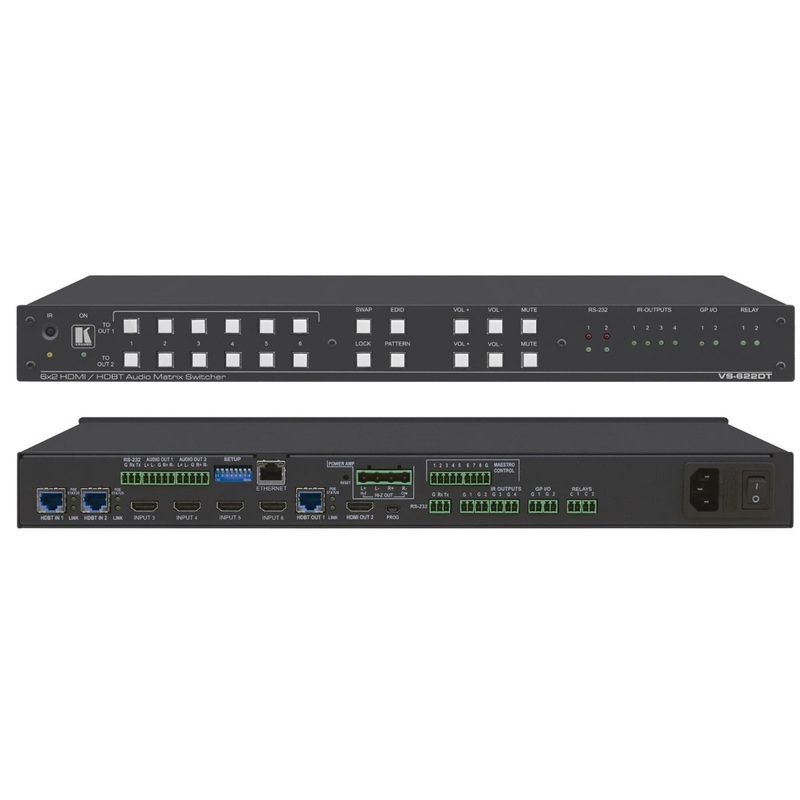

Kramer Electronics VS-622DT All-in-One Presentation System with 6×2 4K60 4:2:0 HDMI/HDBaseT Matrix Switching, Control Gateway, PoE, Power Amplifier & Maestro Room Automation – VS-622DT

FEATURES

• Resolutions up to 4K@60Hz (4:2:0)
• Data Rate up to 10.2Gbps (3.4Gbps per graphics channel)
• Control Gateway with RS232, IR, GPI/O, and Relay Ports
• Simple and Powerful Maestro 1.5 Room Automation
• Power Amplifier 1x120W @70V/100V & 2x60W @8
• Provides Power (PoE) on All HDBaseT Ports to Compatible Devices

VS622DT is an allinone 4K@60Hz (4:2:0) presentation system with 6×2 HDMI/HDBaseT matrix switching, control gateway, PoE, power amplifier, and Maestro room automation. The unit reclocks and equalizes the signals and can route any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.
VS622DT is also a control gateway that can send control signals over the Ethernet or HDBT LINE with control ports that include: RS232, four IR, two GPI/O, and two relays to control a wide variety of AV devices. The unit provides power to PoE compatible devices.

• Max. Data Rate 10.2Gbps (3.4Gbps per graphics channel).
• Max. Resolution 4K@60Hz (4:2:0) and WUXGA.
• HDBaseT Extension Reach Up to 100m at 4K @60Hz (4:2:0), up to 130m (430ft) at full HD (1080p @60Hz 36bpp), up to 180m (590ft) at ultramode and full HD (1080p @60Hz 24bpp). For optimum range and performance, use recommended Kramer cables.
• Simple and Powerful Maestro Room Automation Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
• Provides Power (PoE) on All HDBaseT Ports to Compatible Devices.
• Power Amplifier 1x120W @70V/100V & 2x60W @4/8 with line level output, fast swapping between two deembedded audio sources and individual gain for each source.
• Audio Deembedding (Extracting) The user selects the audio signals from 2 of the 6 inputs (2 HDBaseT + 4 HDMI) to be deembedded. The deembedded signals are output through the two balanced analog audio outputs. In addition, one of the deembedded audio signals can be output to the power amplifier.
• HDBaseT Data Tunneling Supports Ethernet tunneling, as well as bidirectional tunneling for RS232 and IR control.
• HDCP Compliant.
• HDMI Support 3D, Deep Color, x.v.Color, Lip Sync, Dolby TrueHD, Dolby Digital Plus, DTSHD, and 7.1 PCM.
• EDID Capture Copies and stores the EDID from a display device.
• Advanced Auto AV Switching Option Independent (breakaway) audio routing of embedded HDMI content to two balanced audio ports.
• Programmable StepIn over HDMI Functionality When used in conjunction with compatible stepin devices, such as the SIDX3N and DIP31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
• True Video Clock Detection.
• NonVolatile EDID Storage.
• Kramer reKlocking & Equalization Technology Rebuilds the digital signal to travel longer distances.
• Lock Button Prevents unwanted tampering with the front panel.
• Internal Pattern Generator.
• Embedded Web Pages Provide remote configuration and operation.
• Static or Dynamic DHCP IP Addressing.
• Flexible Control Options Front panel buttons, IR remote (included), optional external remote IR receiver, RS232, Ethernet, buttons and LED over contact closure, embedded Web server, Kramer Protocol 3000 support.
• USB Port For upgrading firmware.
