Kramer Electronics VM-4UX 1:4 4K 12G SDI DA – VM-4UX

FEATURES

• 1:4 SDI distributor
• Resolution Up to 4K (4:2:2) 30bpp
• Data rate Autoadapting, up to 12Gbps
• Input Reach Up to 80m (260ft) at 12Gbps
• Compliance SMPTE standards

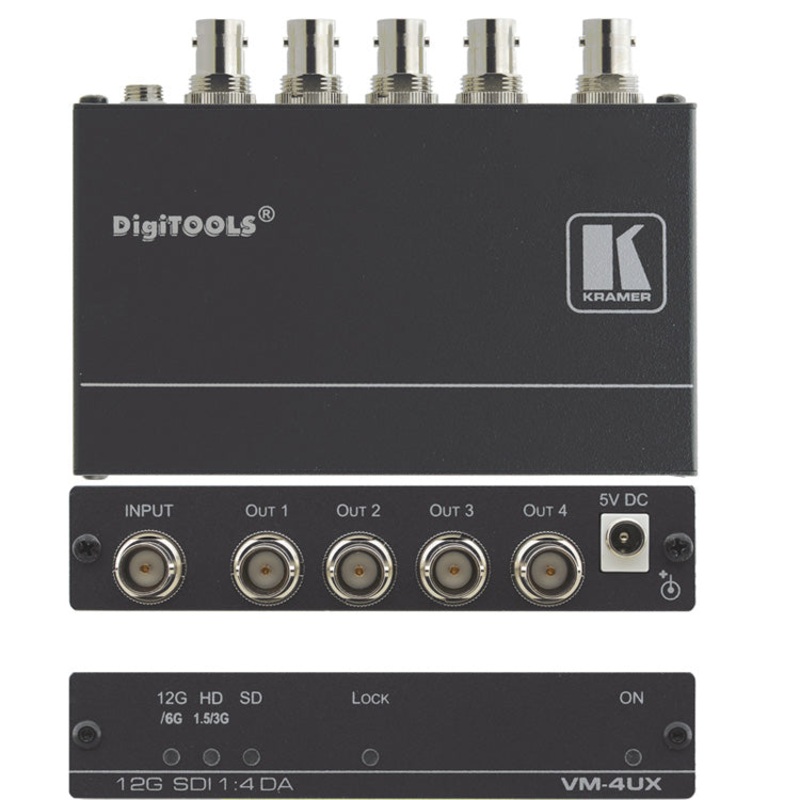

VM4UX is a compact and high performance 1:4 4K distributor for standard broadcastgrade SDI signals of up to 12G transmitted data rate. It auto-adapts to the data rate of one SDI input signal, equalizes and reclocks the signal to improve transmitted signal reach, and distributes the signal to four identical SDI outputs.

• Reliable Wire Connectivity Coaxial broadcastgrade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
• Extendedreach Input Extension Input signal equalization and output signals reclocking to gain extendedreach signal extension. Using Kramer highquality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (262ft) for 12G 4K signals.
  Note: Reach depends on the signal resolution, and quality of the copper cable used. Reach extension performance may vary while using nonKramer coaxial cables.
• Transmitted Data Rate Autoadapting from 270Mbps to 12Gbps data rates.
• Compliance Complies with SMPTE 259M (SDSDI), 292M (HDSDI), 344M (EDSDI), 424M (3G HDSDI), ST2081 (6GSDI) and ST2082 (12GSDI) standards.
• Max. Resolution 4K@60Hz (4:2:2) 30bpp.
• SDI Signal Transmission SDI, HDSDI, 3G HDSDI, 6G and 12G SDI compliant signals, supporting pass-through of standard embedded audio channels with ancillary ID and metadata information.
• LED Indicators Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
• Easy Installation Compact DigiTOOLS fanless enclosure for small footprint spaces and overceiling mounting, or sidebyside rack mounting.
