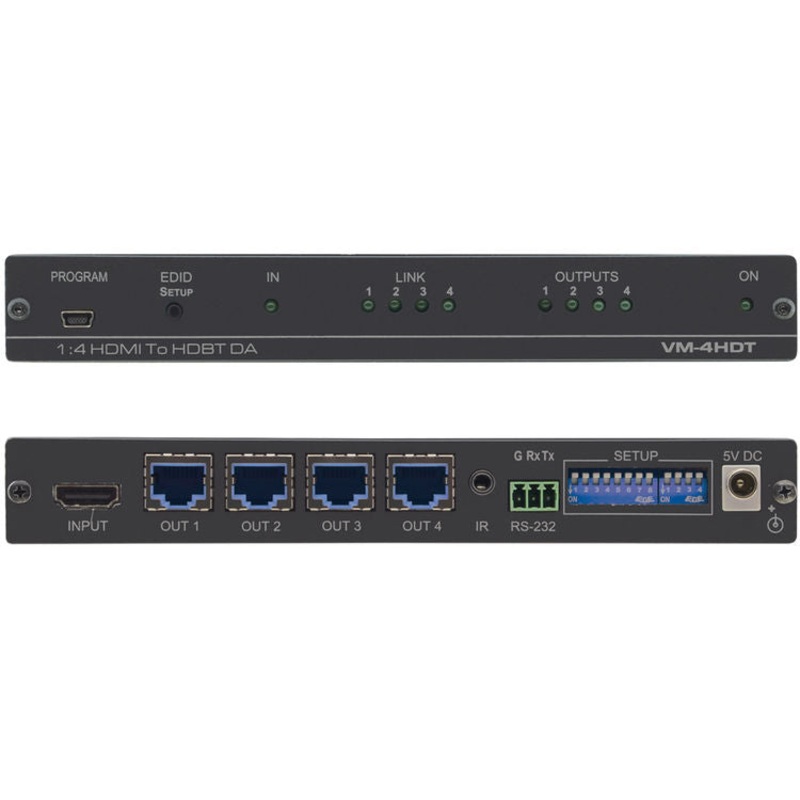

Kramer Electronics VM-4HDT 1:4 4K60 4:2:0 HDMI to LongReach HDBaseT DA – VM-4HDT

FEATURES

• Max Data Rate 10.2Gbps
• Max Resolution 4K UHD
• Kramer Equalization & reKlocking Technology
• IEDIDPro Kramer Intelligent EDID Processing
• Default EDID For fast and efficient connection.

• Size – MegaTOOLS
• Audio – E

VM4HDT is a highquality 1:4 4K UHD HDMI to HDBT distribution amplifier that takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical HDBT outputs. The VM4HDT distributes signals having resolutions of up to 4K and including WUXGA and 1080p.

• Maximum Data Rate – 10.2Gbps (3.4Gbps per graphic channel).
• Max. Resolution – Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0).
• HDMI Support – 3D, Deep Color, x.v.Color, 3D.
• HDCP Compliance – Sources that support HDCP output HDCP protected content.
• Kramer Equalization & re-Klocking Technology – Rebuilds the digital signal integrity to travel longer distances.
• I-EDIDPro Kramer Intelligent EDID Processing – An intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems.
• Default EDID – For fast and efficient connection.
• 3D Pass-Through.
• Range – 70m (230ft).
• Size – Compact MegaTOOLS – 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
