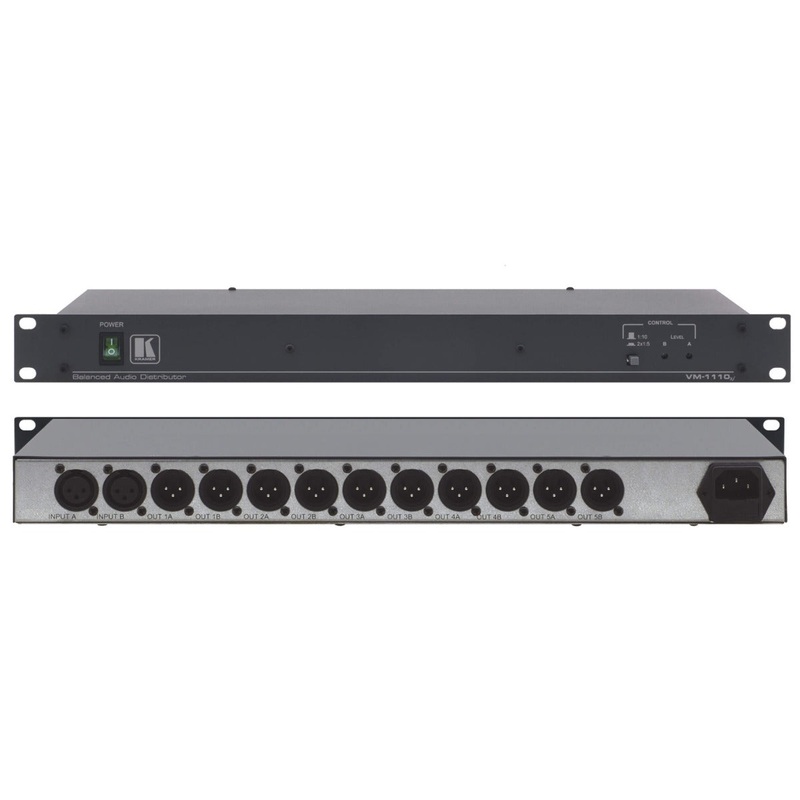

Kramer Electronics VM-1110xl 1:10 Balanced Mono Audio Distribution Amplifier – VM-1110xl

DISCONTINUED BUT CURRENTLY 1 LEFT IN STOCK WITH KRAMER (08/07/24)

FEATURES

• Level Controls
• S/N Ratio 89.3dB
• XLR Connectors

The VM-1110xl is a high-performance distribution amplifier for balanced mono audio signals on XLR connectors. It can also be configured as a 1:5 distribution amplifier for stereo-balanced audio signals.

• • Level (Gain) Controls.
  • Dual Mode Configure as 1:10 (mono) or 1:5 (stereo) DA.
  • S/N Ratio 89.3dB.
  • Standard 19 Rack Mount Size 1U.

SPECIFICATIONS

INPUTS

• 2 balanced stereo audio, +4dBu/50k on XLR (F) connectors

OUTPUTS

• 10 balanced stereo audio, +4dBu/50 on XLR (M) connectors

MAX. OUTPUT LEVEL

• 23.8Vpp

BANDWIDTH (-3DB)

• >100kHz

S/N RATIO

• 89.3dB

CROSSTALK

• 78dB

CONTROLS

• Level (x2): 0.7dB to +5.1dB, mode selector switches

COUPLING

• AC (input)
• DC (output)

AUDIO THD + NOISE

• 0.081%

AUDIO 2ND HARMONIC

• 0.006%

POWER CONSUMPTION

• 230V AC, (115V AC USA), 6VA

INCLUDED ACCESSORIES

• Power cord

PRODUCT DIMENSIONS

• 19″ x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.8kg (6.2lbs) approx.

SHIPPING DIMENSIONS

• 55.00cm x 27.60cm x 10.70cm (21.65″ x 10.87″ x 4.21″ ) W, D, H

SHIPPING WEIGHT

• 3.6kg (8.0lbs) approx.
