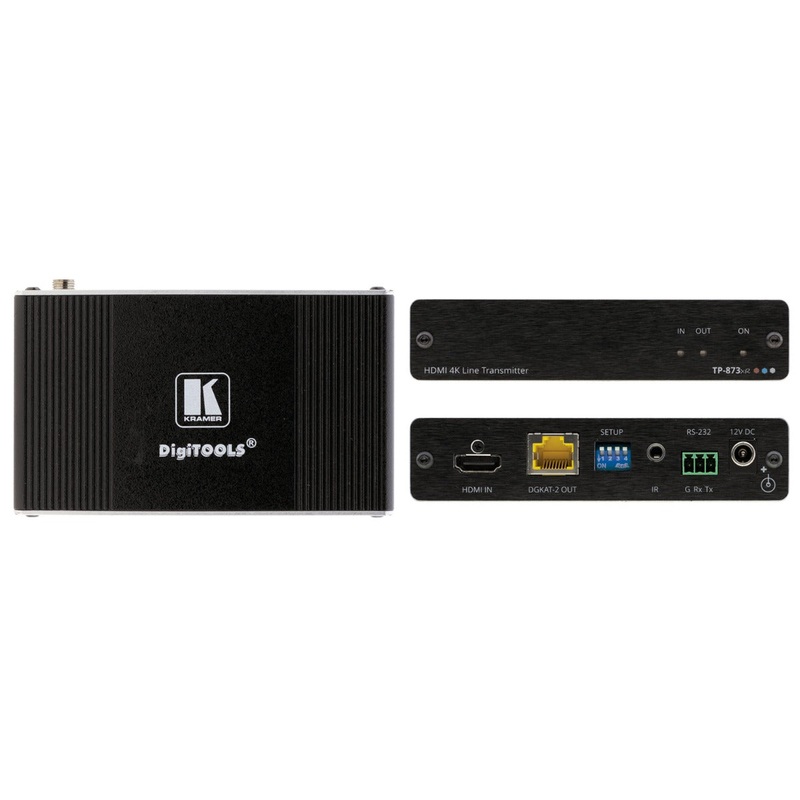

Kramer Electronics TP-873xr 4K HDR HDMI PoC Transmitter with RS232 & IR over Long-Reach DGKat 2.0 – TP-873xr

FEATURES

• Compact, lowheat DGKat 2.0 transmitter
• Up to 50m (160ft) at 4K@60Hz (4:4:4)
• Up to 70m (230ft) at 4K@30Hz (4:4:4)
• HDR, HDCP 2.2 compliance
• Control extension
• Twoway powering

TP873xr is a highperformance, longreach DGKat 2.0 transmitter for 4K@60Hz (4:4:4) HDR HDMI HDCP 2.2 signals, RS232 and IR signals and 2way powering over twisted pair. It converts the HDMI, RS232 and IR input signals into a DGKat 2.0 signal and transmits it to the receiver. TP873xr extends video signals to up to 50m (160ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.

• High Performance Extender Professional DGKat 2.0 transmitter for providing longreach signals and 2way power over twisted pair copper infrastructures. PT873xr employs lowlevel video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with nearzero latency.
• HDMI Signal Extension HDR, HDCP 2.2 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTSHD, 2K, 4K, and 3D as specified in HDMI 2.0.
• EDID Passthrough Passthrough algorithm ensures Plug and Play operation for HDMI source and display systems.
• Multichannel Audio Extension Up to 32 channels of digital stereo uncompressed signals for supporting studiograde surround sound.
• Bidirectional RS232 Extension Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• Costeffective Maintenance Status LED indicators for HDMI and DGKat 2.0 ports facilitate easy local and remote maintenance and troubleshooting.
• Easy Installation Single twistedpair cable for signal and power wiring. Compact DigiTOOLS fanless enclosure for deviceback mounting, or sidebyside mounting of 3 units in a 1U rack space with the optional, compatible Kramer rack adapter.
