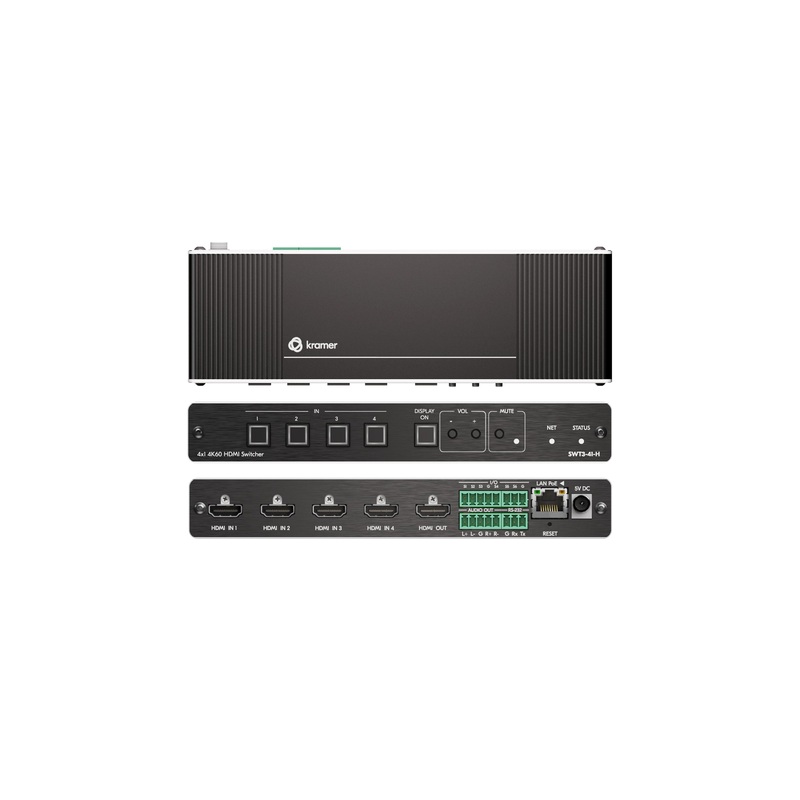

Kramer Electronics SWT3-41-H 4×1 4K60 HDMI Switcher

FEATURES

• 4×1 Intelligent Switcher
• Up to 4K@60Hz (4:4:4) Resolution
• PoE powering
• Secured remote control and management

SWT341H is an intelligent 4×1 automatic switcher for 4K60 4:4:4 HDMI video signals, with plug and play user experience such as priority or lastconnected autoswitching based on active video signal detection, and easy remote IPdriven management and control.

• Auto Switcher Ease of Use Automatically plays the switched source signal on the connected display according to userconfigured preferences, such as priority or lastconnected input. When the user manually switches, by pressing a button, the auto switching is overridden.
• HDMI Signal Switching HDCP 2.2 compliant, supporting deep color, x.v.Color, CEC, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTSHD, 2K, 4K, and 3D as specified in HDMI 2.0.
• IEDIDPro Kramer Intelligent EDID Processing Intelligent EDID handling, processing, locking and passthrough algorithm ensures plug & play operation for HDMI source and display systems
• Multichannel Audio Switching Up to 32 channels of digital stereo uncompressed signals for supporting studiograde surround sound.
• Audio Deembedding The digital audio signal passingthrough to the HDMI output, is deembedded, converted to an analog signal and sent to the stereo balanced analog audio output. This enables playing the audio on a locally connected professional audio system (such as DSP) and speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).
• Display On/Off Operation Meeting presentation is simplified by manually or automatically turning ON/OFF a CECenabled or seriallycontrolled display when the presentation source is plugged in / unplugged with userdefined shutdown delay.
• Simple and Flexible Control Remote IPcontroller connection, browser operation webpage, local panel buttons, and remotely connected contactclosure buttons triggering configurable operation functions, for easy and fully flexible user ports selection, signals routing, and switcher control.
• Builtin Intelligent Control Gateway Remote IPdriven intelligent control of connected HDMI and sensor devices via RS232 or I/O. Eliminating the need for an external control gateway, this feature reduces installation complexity and costs, to enable easy integration with control systems, such as Kramer Control.
• Secured Operation Standard ITgrade 802.1x authentication for secured IT LAN connectivity operation.
• Comprehensive and Costeffective Management Local control via volume and mute panel buttons, and volume and mute contact closure switches. Distance control via userfriendly embedded web pages via the Ethernet, Protocol 3000 API commands via RS232 serial communication transmitted by a PC, touch screen system or other serial controller.
• Easy and Elegant Installation PoE powering via LAN port connection, and compact DemiTOOLS fanless enclosure for userreachable table mounting, or sidebyside mounting of 2 units in a 1U rack space with the recommended rack adapter.

SPECIFICATIONS

INPUTS

• 4 HDMI: On a female HDMI connector

OUTPUTS

• 1 HDMI: On a female HDMI connector
• 1 Balanced Stereo Audio: On 5pin terminal block connector

PORTS

• 1 RS-232: On a 3pin terminal block connector
• 6 GPIO: On an 8pin terminal block connector
• 1 PoE-accepting Ethernet: On an RJ45 connector

VIDEO

• Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
• Max Resolution: 4K@60Hz (4:4:4) resolution
• Content Protection: HDCP 2.3
• HDMI Support: Deep Color, 3D, HDR as specified in HDMI 2.0b

POWER

• Power Adapter:
  Source: 5V DC, 4A
• Consumption: 0.82A
• PoE
  Consumption: 120mA
• Max. Power: 5.76W

ENCLOSURE

• Size: DemiTOOLS
• Type: Aluminum
• Cooling: Convection ventilation

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0 to +40C (32 to 104F)
• Storage Temperature: 40 to +70C (40 to 158F)
• Humidity: 10% to 90%, RHL noncondensing

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

• Health, Safety, Environmental: RoHs, WEEE, CE

PRODUCT DIMENSIONS

• 19.05cm x 5.96cm x 2.74cm (7.50″ x 2.35″ x 1.08″ ) W, D, H

PRODUCT WEIGHT

• 0.3kg (0.7lbs) approx.

SHIPPING DIMENSIONS

• 34.50cm x 16.50cm x 5.20cm (13.58″ x 6.50″ x 2.05″ ) W, D, H
