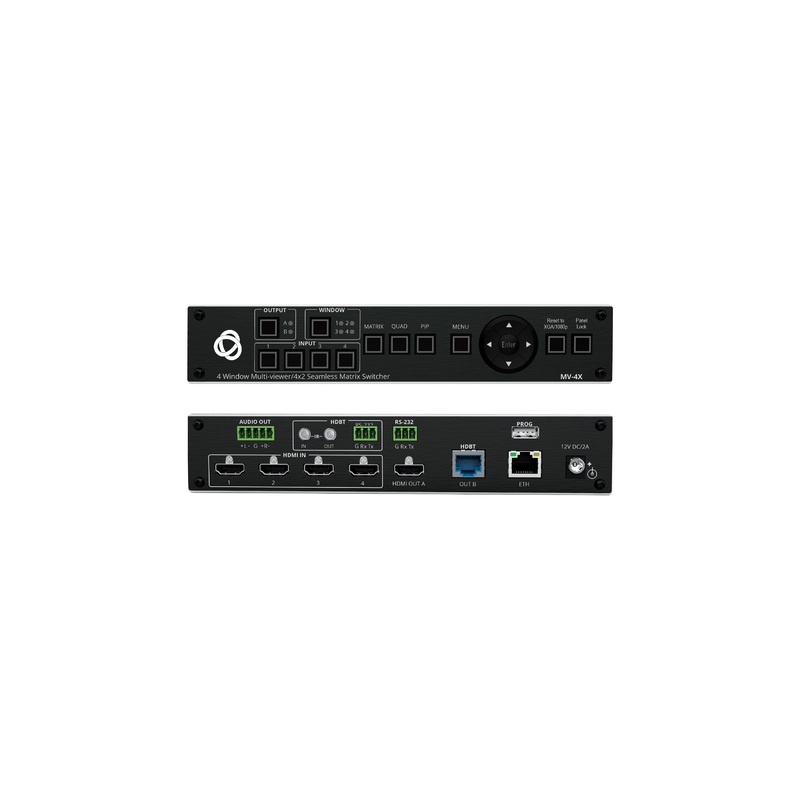

Kramer Electronics MV-4X 4 Window Multiviewer/4×2 Seamless Matrix Switcher

FEATURES

• 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs.

• Matrix mode operation as well as fully customizable multiwindow operation modes.

• Supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.

• Supports chroma keying and an onscreen logo generator.

MV4X is a highperformance HDMI matrix switcher with integrated scaling technology and multiwindowing options. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz 4:4:4 and LPCM audio up to 7.1 channels and 192kHz are supported on both inputs and outputs. In addition, MV4X is fully compatible with the HDCP 1.x and 2.3 standards.
The product offers 2 outputs HDMI and HDBT. Users can choose to display any of the four HDMI sources individually, in full screen, or in a variety of multiwindow modes that include quad mode, PiP, and PoP on both outputs. Alternatively, MV4X offers a seamless (zerotime video cut) 4×2 matrix switcher option. The product also supports chromakeying and includes a logo overlay feature.
You can control and manage the MV4X, including the input/window routing, position, and size via the front panel OSD buttons, Ethernet (with embedded webpages), and RS232.

• High Performance MultiViewer 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs that supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.
• ZeroTime Video Cuts Connect up to four HDMI sources, an HDMI and an HDBT sink, and seamlessly switch between them.
• HDMI Support HDR10, CEC (for outputs only), 4K@60Hz, Y420, BT.2020, Deep Color (for inputs only), x.v.Color, 7.1 PCM, Dolby TrueHD, DTSHD, as specified in HDMI 2.0.
• Content Protection Supports HDCP 2.3.
• Chroma Keying Support select to key the video input using a uniformcolored background.
• Includes numerous filters and algorithms that eliminate picture artifacts.
• Matrix Switching Truly seamless zero time 4×2 switching in Matrix mode.
• Multiple Display Options Display any of 4 HDMI sources individually, full screen, with seamless switching in Matrix mode. Or choose to display the sources using multiwindow modes such as fully customizable standard views like PiP (Picture in Picture) and PoP (Picture outside of Picture) as well as Quadwindow modes.
• 4 Preset Memory Locations Supports storage of multiwindow arrangements as a preset for later use.
• Auto Layout Support Autowindow mode that automatically changes the number of visible windows based on the number of live sources.
• Independent audio source selection in all modes.
• Image Rotation 90, 180 and 270degree rotation support for 4K output resolutions on input 1 in matrix mode.
• Selectable Border Design Each window can have a border with a selectable color.
• Logo Support Upload and freely position graphic logo overlay as well as a boot screen logo.
• Multiview window Setup Intuitive and easy adjustment of window size, position, and settings.
• Userfriendly Control Via the builtin WebGUI, as well via the OSDdriven frontpanel switches.
• EDID Management Perinput EDID management with internal or external EDID options.
• Local Monitor View Matrix mode is ideal for applications where the user requires a local monitor to view the image on the display before switching it to the remote display.

SPECIFICATIONS

INPUTS

• 4 HDMI: On a female HDMI connector

OUTPUTS

• 1 HDMI: On a female HDMI connector
• 1 HDBT: On an RJ45 connector
• 1 Balanced Stereo Audio: On a 5pin terminal block

PORTS

• 1 IR IN: On an RCA connector for IR tunneling
• 1 IR out: On an RCA connector for IR tunneling
• 1 RS-232: On a 3pin terminal block for RS232 tunneling
• 1 RS-232: On a 3pin terminal block for device control
• Ethernet: On an RJ45 port
• 1 USB: On a type A USB port

VIDEO

• Max Bandwidth: 18Gbps (6Gbps per graphic channel)
• Max Resolution: HDMI: 4K@60Hz (4:4:4)
• Max Resolution: HDBaseT: 4K60 4:2:0
• Compliance: HDMI 2.0 and HDCP 2.3
• Extension Range: Up to 40m (130ft): At 4K@60Hz 4:2:0
• Extension Range: Up to 70m (230ft): At full HD (1080p@60Hz)

CONTROL

• Front Panel: Input, output and window buttons, operation mode buttons, menu buttons, resolution reset and panel lock buttons

INDICATION LEDS

• Front Panel: Output and window indication LEDs

ANALOG AUDIO

• Max Vrms Level: 15dBu
• Impedance: 500
• Frequency Response: 20Hz 20kHz @ +/0.3dB
• S/N Ratio: >88dB, 20Hz 20kHz, at unity gain (unweighted)
• THD + Noise: <0.003%, 20 Hz 20 kHz, at unity gain

POWER

• Consumption: 12V DC, 1.9A
• Source: 12V DC, 5A

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0 to +40C (32 to 104F)
• Storage Temperature: 40 to +70C (40 to 158F)
• Humidity: 10% to 90%, RHL noncondensing

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

• Safety: CE, FCC
• Environmental: RoHs, WEEE

ENCLOSURE

• Size: Half 19 1U
• Type: Aluminum
• Cooling: Convection Ventilation

CONDUCTORS

• Net Dimensions (W, D, H): 21.3cm x 23.4cm x 4cm
• Net Dimensions (W, D, H): (8.4″ x 9.2″ x 1.6″)

GENERAL

• Shipping Dimensions (W, D, H): 39.4cm x 29.6cm x 9.1cm
• Shipping Dimensions (W, D, H): (15.5″ x 11.6″ x 3.6″)
• Net Weight: 1.29kg (2.8lbs)
• Shipping Weight: 1.84kg (4lbs) approx

ACCESSORIES

• Included: Power cord and adapter

PRODUCT DIMENSIONS

• 21.30cm x 23.40cm x 4.00cm (8.39″ x 9.21″ x 1.57″ ) W, D, H

PRODUCT WEIGHT

• 1.3kg (2.8lbs) approx.

SHIPPING DIMENSIONS

• 39.40cm x 29.60cm x 9.10cm (15.51″ x 11.65″ x 3.58″ ) W, D, H

SHIPPING WEIGHT

• 1.8kg (4.1lbs) approx.
