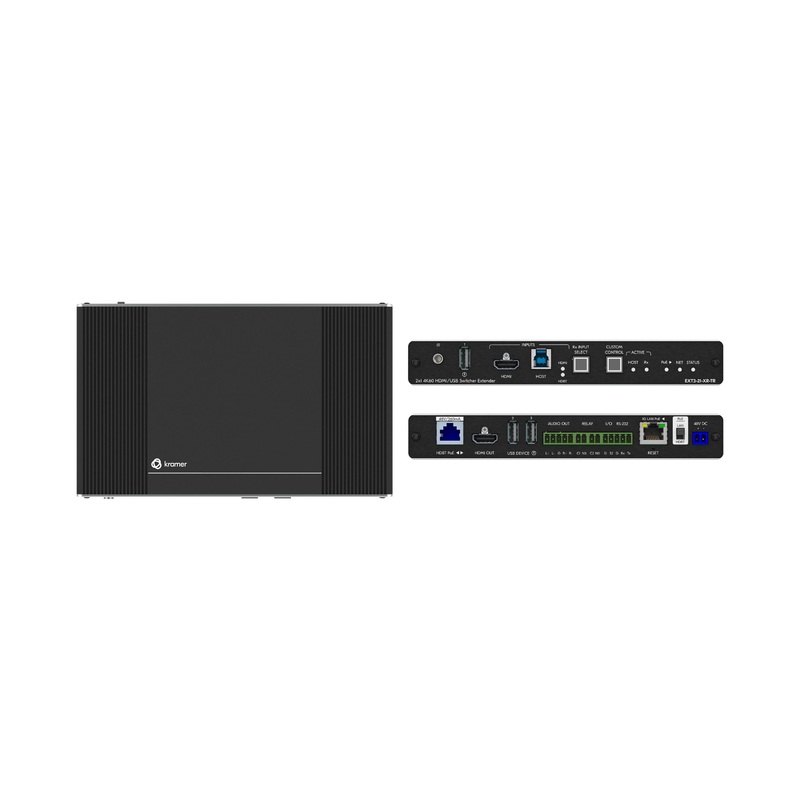

Kramer Electronics EXT3-21-XR-TR 2×1 4K60 HDMI/USB Switcher Extender over 100m HDBaseT 3.0

FEATURES

• 4K60 4:4:4 AV and USB coupledsignals switching and extension
• Pairsynched kitlike autoswitching
• Flexible transmitter or Switcher Receiver
• 2way PoE powering
• Builtin intelligent control gateway
• Secured remote control and management

EXT321XRTR is a highperformance, extendedreach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS232, and IR signals over twisted pair, flexibly set as transmitterside or receiverside device.
EXT321XRTR transmitterside converts all input signals into the transmitted HDBaseT 3.0 signal, and extends uncompressed video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.
EXT321XRTR receiverside is an autoswitcher with HDMI and HDBaseT inputs that receives the HDBaseT 3.0 signal and converts it back into the original input signals. The connected USB 3.1 peripherals, such as a room camera and microphone, are switchable for use of the active USB host, for convenient hybrid meeting operation with both room and online participants.

• Hybridmeeting Collaborative Switching Controllable coupledsignals switching of both AV and USB host inputs, for concurrent connection with AV output and room USB devices, allows collaborative hybrid meeting where multiple meeting participants are switched to share their content with both room and online meeting participants.
• High Performance Standard Extender Professional HDBaseT extender for providing extendedreach signals over twistedpair copper infrastructures. EXT321XRTR is a standard extender that can be connected to any marketavailable HDBaseTcompliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
• HDMI Signal Switching and Extension HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTSHD, 2K, 4K, and 3D as specified in HDMI 2.0.
• HDMI Mirroring Transmitterside extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain.
• Auto Switcher Ease of Use Auto Switcher Ease of Use Automatically plays the signal of the plugged source on the connected display, according to userconfigured preferences, such as lastconnected input, or user control commands. Pairsynched kitlike autoswitching of paired Kramerrecommended transmitter and receiver devices, for simple switching in controlless applications.
• Flexible USB Switching and Extension An active USB 3.1 host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, and switched at the receiver side, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
• Multichannel Audio Transmission Up to 32 channels of digital stereo uncompressed signals for supporting studiograde surround sound.
• Audio Deembedding The digital audio signal passingthrough to the output, is deembedded, converted to an analog signal and sent to the stereo balanced analog audio output. This enables playing the audio on a locally connected professional audio system (such as DSP) and speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).
• IEDIDPro Kramer Intelligent EDID Processing Intelligent EDID handling, processing and passthrough algorithm that ensures Plug and Play operation.
• Convenient Power On/Off Control of Display Simply press the DISPLAY ON button to toggle on and off the power of the connected display using the configurable control interface and commands, and view display power on/off status at all times via button LED indication.
• Builtin Intelligent Control Gateway Remote IPdriven intelligent control of connected AV, USB, motorized projector screen and sensor devices via CEC, RS232, IR, I/O or Relay. Eliminating the need for an external control gateway, this feature reduces installation complexity and costs, to enable easy integration with control systems, such as Kramer Control.
• Simple Control Remote IPcontroller connection, browser operation webpage, local panel buttons, or remotely connected contactclosure buttons, for easy and fully flexible user ports selection, signals routing, and switcher extender control.
• Ethernet Extension Ethernet interface data flows in both directions, allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS232 Extension Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• Secured Operation Standard ITgrade 802.1x authentication for secured IT LAN connectivity operation.
• Comprehensive Management Local panel status LED, remote IPdriven firmware upgrade and management via userfriendly embedded web pages, and remote IP or local serial service and management via API commands and responses communication, for flexible service options and ensure lasting, field proven deployment.
• Costeffective Maintenance Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.
• Easy and Elegant Installation PoE powering via LAN port connection, or bidirectional PoE powering via HDBaseT port connection, and MegaTOOLS fanless enclosure for droppedceiling mounting, on or under table, or sidebyside mounting of 2 units in a 1U rack space with the recommended rack adapter, for easy switcher extender deployment.

SPECIFICATIONS

INPUTS

• Receiver Side:
  1 HDBT: On an RJ45 connector
• 1 HDMI: On an HDMI Connector

OUTPUTS

• Transmitter Side:
  1 HDBT: On an RJ45 connector
• Transmitter Side:
  1 HDMI Loop: On an HDMI connector
• Receiver Side:
  1 HDMI: On an HDMI connector
• Transmitter or Receiver Side:
  1 Balanced Stereo Audio Line: On a 5pin terminal block connector

PORTS

• 1 USB 3.1 (Host): On a USBB female connector
• 3 USB 3.1 (Device): On USB typeA female connectors
• 1 LAN PoE 1000BaseT Ethernet: On an RJ45 female connector, for LAN connection
• 1 RS232: On a 3pin terminal block connector
• 1 IR: On a 3.5mm mini jack
• 2 GPIO: On a 2pin terminal block connector
• 2 Relay: On a 4pin terminal block connector

EXTENSION LINE

• Reach: Up to 100m (330ft), using Kramer HDBaseT cables
• Standards Compliance: HDBaseT 3.0

VIDEO

• Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
• Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
• Content Protection: HDCP 2.3
• HDMI Support: 4K, as specified in HDMI 2.0b
• Receiver-side Max Inputs Switching Time: HDMI to HDBT: 5sec, HDBT to HDMI: 8 sec

USB FEATURES

• USB 3.1 Data Rate: Up to 10Gbps
• Integrated USB Hubs: 1
• Standards Compliance: USB 3.2 GEN 2, 2.0 and 1.1

EXTENDED USB

• USB 2.0 Data Rate: Up to 480Mbps
• Transmitted Data Bandwidth: Up to 300Mbps
• Standards Compliance: USB 2.0 and 1.1

EXTENDED ETHERNET

• Max Data Rate: 1 Gbps

EXTENDED RS-232

• Baud Rate: 300 to 115200

ANALOG AUDIO

• Max Level: 15dBu
• Impedance: 500
• Bandwidth: 20Hz 20kHz
• THD + N: 0.002% @1kHz at nominal level
• S/N Ratio: 93dB, 20Hz 20kHz
• Coupling: DC

POWER

• Power Adapter:
  Source: 48V 1.36A
• Consumption: 48V 0.73A
• Max. Power: 35W
• PoE
  Consumption: 200mA
• Max. Power: 9.6W
• USB Device Charging
  Max. Total Current: 2A

ENCLOSURE

• Size: Mega Tools
• Material: Aluminum
• Cooling: Convection ventilation

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0 to +40C (32 to 104F)
• Storage Temperature: 40 to +70C (40 to 158F)
• Humidity: 10% to 90%, RHL noncondensing

GENERAL

• Net Dimensions (W, D, H): 19 cm x 11.6 cm x 2.7 cm (7.48″ x 4.56″ x 1.06″)
• Shipping Dimensions (W, D, H): 34.5 cm x 16.5 cm x 5.2 cm(13.58″ x 6.5″ x 0.41″)
• Net Weight: 0.60 kg (1.32 lbs)
• Shipping Weight: 1.11 kg (2.44 lbs)

ACCESSORIES

• Included: Power Adapter & cord & Bracket set & QS

PRODUCT DIMENSIONS

• 19.00cm x 11.60cm x 2.70cm (7.48″ x 4.57″ x 1.06″ ) W, D, H

PRODUCT WEIGHT

• 0.6kg (1.3lbs) approx.

SHIPPING DIMENSIONS

• 34.50cm x 16.50cm x 5.20cm (13.58″ x 6.50″ x 2.05″ ) W, D, H

SHIPPING WEIGHT

• 1.1kg (2.4lbs) approx.
