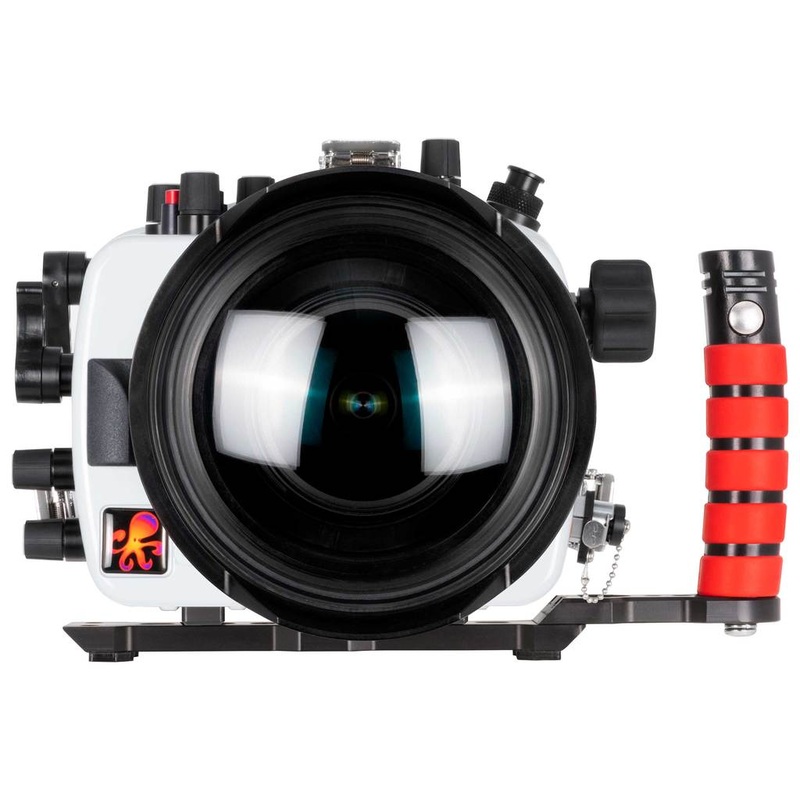

A full featured and durable waterproof housing forSony Alpha 1 and a7S III full framemirrorless digitalcameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

This housing requires the addition of a compatibleDL Lens Port for waterproof operation. Lens Port not included.

View the DL Port Chart for Sony Alpha Series…

Sony Alpha 1 Mirrorless Camera

Sony’s new flagship full frame camera is a marriage of speed and image quality. A huge 50 megapixel stacked CMOS sensor with a secret new ‘high speed processing circuit’ are now packed into what still looks and feels like any other Sony Alpha camera to date. Sony also introduces a new lossless RAW compression formatwhich makes file storage faster and more efficient than shooting uncompressed RAW.

Sony has also improved their formidable autofocus engine with twice as many AE/AF calculations per second compared to 2019’s a9 II model. This combined with improved noise reduction provides incredibly fast and accurate autofocus, even when shooting at the smaller apertures desirable in underwater photography.

The electronic viewfinder (EVF) is the highest resolution available to date at 9.44 million-dots.

On the heels of Canon’s EOS R5, the Sony a1 offers professional grade8K stills and video capture and an improved heat dissipation design. If you’re willing to drop down to 4K you can take advantage of the digital Active Steadyshot stabilization on top of the 5.5EV mechanical in-body stabilization.

Sony Alphaa7S III Mirrorless Cameras

Five years after the release of the A7S II, Sony made good on its promise for a successor. This powerful full frame mirrorless is built for the serious videographer with a newly developed BIONZ XR image processing image and a new 12.1MP back-illuminated Exmor R image sensor, significantly reducing rolling shutter.

Exceptional low light performance is good news for the underwater videographer with ultra-high sensitivity expandable 80-409,600 ISO range and 15+ stop dynamic range for movies.

A new heat dissipation system makes continuous 4K/60p recording up to ‘at least’ one hour possible. This is achieved without fans or cabinet vents to keep the camera dust and moisture resistant.

A fast Hybrid AF system has 759 phase-detection AF points covering 92% of the image sensor. Sony claims the camera can deliver fast and accurate autofocus at light levels so low that the human eye struggles.

Hard core videographers will want to take some time with camera’s impressive list of specifications including 16-bit RAW output at up to 60p and 10-bit 4:2:2 internal capture (in codecs including H.265 and All-I H.264).

Lens Ports

This housing features our robust Dry Lock (DL) port system. “Dry Lock” refers to the placement of the o-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor.DL ports are the lightest on the market, yet robust and capable ofstanding up torough surf.Attachment is quick and secure. A system of extensions can accommodate a huge variety oflenses with ease.

Most popular zoom lenses and select lens focus rings can be engaged using simplegearingthat puts adjustment right at your fingertips. A large, soft-touch knob on the side of the housing makes fine tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using. Zoom gears sold separately.

Read more:DL Port System for Sony Alpha Series Cameras

Confidence

The unique rear seal design prevents accidental twisting or stretching of the o-ring for simple and confident assembly. We have eliminated the need for an o-ring groove or channel which can trap sand, dirt, or debris.Three double-passivated stainless steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the o-ring form a solid, watertight seal as it closes.

Vacuum Testing

A vacuum valve is installed standard on the side of the housing. The vacuum valve is designed to be low profile to avoid interference with controls.The optionalVacuum Pump with Gauge # 47011allowsyou todraw a vacuum onthe housing to check forleaks prior to entering the water.

Drawing a vacuum on the system also provides extra security at the surface of the water, especially important when using the housing inrough surf.

M16 Accessory Port

The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads.

TTL Exposure

This housings supports your choice of shootingwith manual strobe exposure or adding a TTL converter depending on your application. The flash bulkheadis located onthe top of the case to alleviate strain on the sync cord.

You can enjoy the fastest and most accurate TTL exposure on the market by adding theDL2 DS Link Sony TTL Converter Ikelite ST1 Hotshoe Kit#46042and a compatible Ikelite DS strobe. Exposure compensation can be used added or subtracted in the camera.

Read more:DL2 DS Link Sony TTL Converter Underwater Photos

Reliable locking connectors between the hotshoe and bulkhead make it easy to install the TTL hotshoeor carry back up parts when traveling to remote locations.

Ergonomics

Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. Large, curved control levers put the most important controls right where you need them: shutter and autofocus (via the AF-ON button). This combination allows you to shoot with or without back button focus, an advanced technique that isuseful for tack sharp focus of super macro and fast moving subjects. Each lever can be extended using the optionalTrigger Extension # 4077.95for perfect spacing when using a right-hand handle.

Therotating controlsare alloperated intuitivelyvia premium soft-touch knobs. An oversized, lobed knob puts the zoom/focus knob at your fingertips while your left hand stays on the handle. Stainless steel, direct-drive rotating controls arevirtually fail-safe and user serviceable and adjustable in a pinch.

All rear camera buttons are accessible by smooth action,hard anodizedaluminum push buttons for reliable performance and easy maintenance. These controls areclearly labeled by laser engraving on the back of the housingthat never fades or falls off.

Set-Up

The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.

Viewfinders

The included SuperEye Viewfinder provides an enhanced view of the camera’selectronic viewfinder when viewed through a dive mask. The viewfinder removes quickly and easily for the attachment of an optionalStraight Magnified Viewfinder# 6890.2 or45 Magnified Viewfinder (Type 1)# 6891.1.

Read more:Straight vs 45 Degree Magnified Viewfinder for Underwater Shooting

HandlingandTravel

The housing, tray, and handles have beenoptimized to reduce weight while maintaining strength and durability. TheRight-Hand Quick Release Handle# 4077.02(sold separately) can be added or removed depending on your needs. The precision machined aluminum base features 1/4-20 tripod mounting sockets and additional mounting locations for future accessories.The base and handle can be quickly removed when breaking down your system for travel.

A 1/4-20 threaded mounting point is located front and center on the housing above the lens port mount. This mount can be used to attach lightweight accessories like a focus light or GoPro camera.

If you’re shooting with two strobe or lighting arms, then a top handle can be added to carry to and from the dive site. Top handles are available in aCable Grip# 4080.07 or Aluminum Top Handle # 4080.08. The rigid aluminum version provides additional mounting points for lighting and accessories.

Adding a dedicated focus light to your top mount or strobe arm is highly recommended formore accurate autofocus in low light settings.

Durability andCorrosion-Free Performance

Our white ABS-PC blend housing provides strength and corrosion-free performance year with minimal maintenance. ABS-PC is lighter than aluminum for convenience during travel and less drag underwater. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.

Made in USA

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit and function. Every unit is water pressure tested to 200 feet (60m). We back our products with over 50 years of experience and the best reputation for service within the dive industry.

Camera Compatibility

This housing is only compatible withSony a1 and a7S III cameras as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent otherSony camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this particular housing.

Ikelite DSStrobeCompatibility

Any Ikelite DS strobe may be used in manual exposure modes by attaching one or two with a compatible electrical sync cord. Current model DS strobes may be used in TTL exposure mode by adding the optionalDL2 DS Link TTL Converterand an electrical sync cord.

Non-Ikelite Strobe Compatibility

SEA&SEA, INON, andRetra strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

Ikelite Non-Digital Strobe Compatibility

Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.

Fiber Optic Compatibility

Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.

Remote Triggering Compatibility

Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter#4405 or the Water Wizard system (manufactured and sold by Aquatica).

Specifications

200′ (60m) depth rating

Compatible with DL system lens ports

Controls are provided for all camera functions except:Diopter adjustment, Focus mode dial (a1); Joystick up/down/left/right (Joystick can be depressed), Control wheel;Control wheel functions may be accessed using the Front and Rear Dials

1/4-20 thread base mounts with 3.5″ spacing

Slightly positivebuoyancy in fresh water

Actual buoyancy varies depending on choice of lens and port

Housing 4.67lb (2121 g)

Tray with left handle 11 oz (312 g)

9 x7.25 x 6″ (229 x 184 x152 mm) Not including

Vacuum valve included (pump sold separately)

Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes

ABS-PC construction is fundamentally corrosion-resistant

Made in the USA; Individually inspected for fit and water pressure tested to depth

2 year limited warranty

In the Box

Housing

Rear O-ring # 0132.59 (installed)

Front O-ring # 0132.45 (installed)

Zoom Gear Retainer # 75900 (installed)

Port Hole Cover # 0200.92 (installed)

Waterproof Bulkhead Cap # 9104.7 (installed)

Base with Left-Hand Quick Release Handle # 4077.67 (installed)

Camera Mount for Sony a7S III # 95415

Camera Mount for Sony a1 # 95419

Tool for Zoom Gear Retainer # 0945.06

.050″Hex Key # 0945.11

Silicone Lubricant1cc Tube
