Wireless Video Transmitter/Receiver Set
Transmitter HDMI/SDI Input, SDI Loop Out
Receiver HDMI & 2 x SDI Outputs
OLED Screen, USB Type-C Power Input
1000′ Line-of-Sight 1080p60 Transmission
5.1 to 5.9 GHz Frequency Range
AES-128 Encryption, 40 ms Latency
L-Series Battery Plates on TX/RX
DC Adapter Power or Optional Battery

###split###

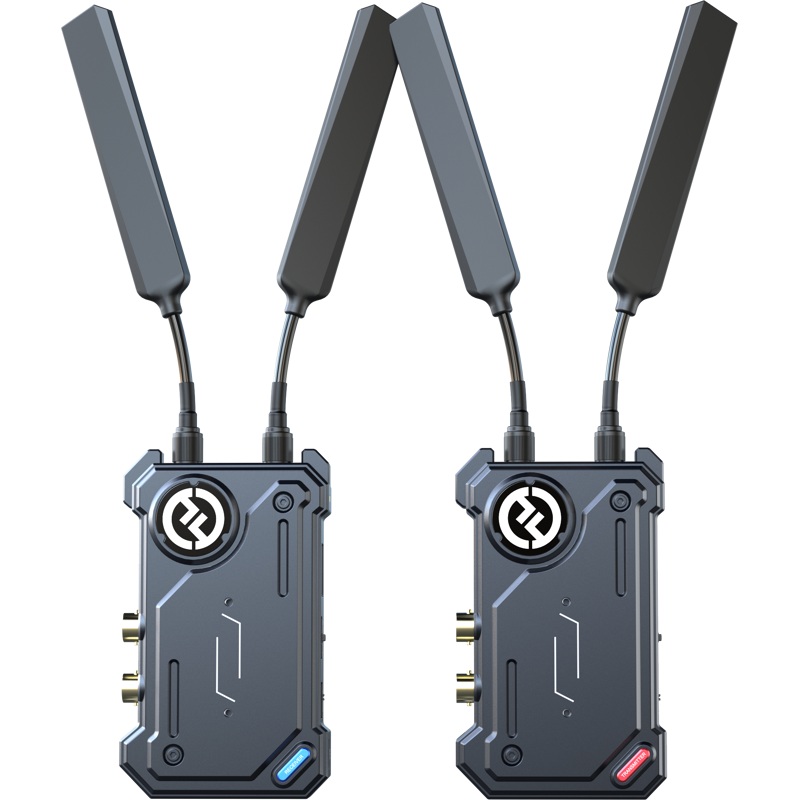

The Cosmo C1 SDI/HDMI Wireless Video Transmission System from Hollyland allows you to transmit up to 1080p60 video via HDMI/SDI inputs up to 1000′ line-of-sight with a low 40 ms latency to an HDMI or dual SDI outputs.

The transmitter offers one HDMI input, one SDI input, and one SDI loop-through output, and the receiver offers two SDI outputs and one HDMI output.

The system operates on the 5 GHz frequency band and is encrypted to prevent video leakage. The system supports smart channel selection, allowing the system to choose the cleanest channel for transmission.

It also supports UVC pull streaming. Both units also feature a bright, easy-to-read OLED display. Each unit is designed to be powered via an L-series battery plate, by the included D adapter, or with an optional USB power supply via the USB Type-C port.

Four standard antennas and two mushroom antennas are supplied for the receiver and transmitter.

Key Features
Transmit up to a 1080p60 HDMI/SDI signal to an HDMI or dual SDI outputs
1000′ line-of-sight transmission with a low 40 ms latency
AES-128 encryption to prevent video leakage
Smart channel selection
Supports UVC pull streaming
SDI loop-through output on transmitter
5 GHz frequency band
OLED screen
USB Type-C power input option
L-series battery plates on back of each unit
Power with included DC adapter or with optional USB adapter

###split###

Hollyland Cosmo C1 Specs
I/O
Antenna Ports Transmitter/Receiver: 2 x RP-SMA Female
Video Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x HDMI Type A Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 2 x BNC (3G-SDI) Output
Receiver: 1 x HDMI Type A Output
HDCP Support Not Specified by Manufacturer
Embedded Audio HDMI/SDI: 2-Channel
Audio None
Power Transmitter/Receiver: 1 x Coax (16 VDC) Input
Other I/O Transmitter/Receiver: 1 x USB 3.1 / USB 3.2 Gen 1 (USB Type-C) Input
Encryption 128-Bit AES
Wireless
Wireless Range 1000′ / 304.8 m
Channel Bandwidth 40 MHz
Frequency Range US: 5.1 to 5.9 GHz
Latency 40 ms
Wi-Fi Yes
Format Support
Video Format HDMI/SDI
1080p: 60
Audio Format Not Specified by Manufacturer
Timecode Support Yes
Power
DC Input Power 6 to 16 VDC
Battery Type Transmitter/Receiver: 1 x L-Series
Mounting
Mounting 1 x Cold Shoe
Environmental
IP Rating None
