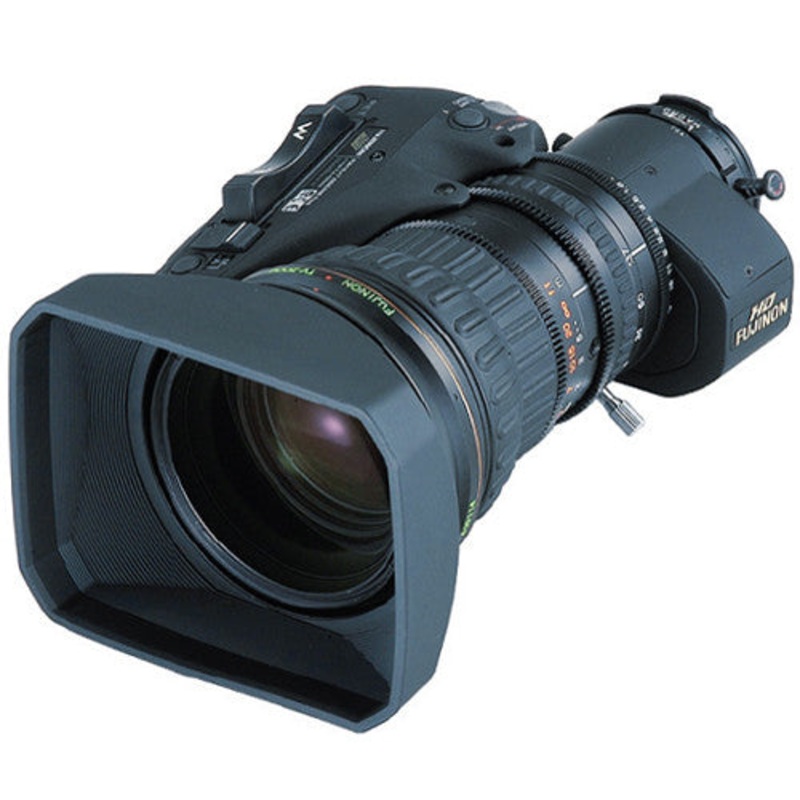

Fujinon ZA17x7.6 BERD S10 HD ENG Lens 2x ext Zoom and Focus Servo – 16710528

FEATURES

• Standard focal length coverage 7.6-137mm (275mm with extender)
• Outstanding HD High Optical Performance
• Equiped New Ergonomical Digital Grip
• 16bit encoders device for virtual system

Lens available in two options:

Fujinon ZA17x7.6BRD-S10 2/3” HD Select Series Lens with Digital Zoom/Focus Servo

OR

Fujinon ZA17x7.6BERD-S10 2/3″ HD Select Series Zoom Lens with Servo & 2x Extender

ZA17x7.6 is affordable standard ENG-style lens with digital servo grip.
The focal length is covering from 7.6 to 130mm (15.2 to 260mm with 2x extender) to cover on-site usability in a versatile range of production for news, documentaries and live sport feeds. This lens offers unsurpassed operational capabilities in a compact design. Unique optical materials combined with the very latest lens element design innovations and EBC multilayer coating technology that produce superb imagery.

SPECIFICATIONS

Model Name

ZA17x7.6BERM / BERD

Focal length

[1x]
7.6-130mm

[2x]
15.2-260mm

Zoom ratio

17x

Extender

2x

Maximum relative aperture (F-no.)

1 : 1.8 (7.6-102mm) / 1 : 2.3 (130mm)

Minimum object distance (M.O.D.) from front lens

0.6m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
7.6mm 696 x 392mm
130mm 43 x 24mm

[2x]
15.2mm 362 x 204mm
260mm 22 x 12mm

Angular field of view
16 : 9 Aspect ratio

[1x]
7.6mm 64.5x 39
130mm 4.2x 2.4

[2x]
15.2mm 35x 20.1
260mm 2.1x 1.2

Filter thread

M82 x 0.75

Approx. Size

85 x 203mm( x Length)

Approx Mass

1.67kg (RM) / 1.74kg (RD) (without lens hood)
