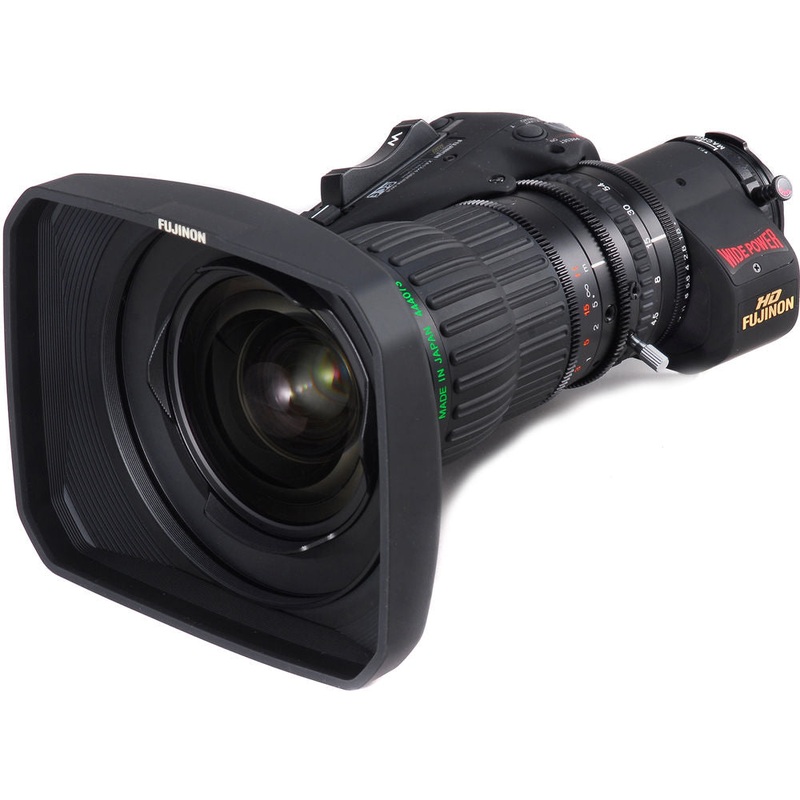

Fujinon ZA12x4.5 BRD S10 HD ENG Lens Zoom and Focus Servo – 16710499

FEATURES

• 4.5mm super wide angle of HD Zoom Lens
• Outstanding HD High Optical Performance
• Equiped New Ergonomical Digital Grip
• 16bit encoders device for virtual system

Select Super Wide-Angle ENG Style Lens

ZA12x4.5 is an affordable wide-angle ENG-style lens with digital servo grip. The focal length is covering from 4.5 to 55mm (9 to 110mm with 2x extender) to cover on-site usability in a versatile range of production for news, documentaries and live sport feeds.
The latest optical technology is contributed to improved control over chromatic aberrations and image distortion on the screen.

SPECIFICATIONS

Model Name

ZA12x4.5BERM / BERD

Focal length

[1x]
4.5-54mm

[2x]
9-108mm

Zoom ratio

12x

Extender

2x

Maximum relative aperture (F-no.)

1 : 1.8 (4.5-41mm) / 1 : 2.4 (54mm)

Minimum object distance (M.O.D.) from front lens

0.3m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
4.5mm 757 x 425mm
54mm 59 x 33mm

[2x]
9mm 373 x 210mm
108mm 31 x 17mm

Angular field of view
16 : 9 Aspect ratio

[1x]
4.5mm 93.6x 61.8
54mm 10.1x 5.7

[2x]
9mm 56.1x 33.3
108mm 5.1x 2.9

Filter thread

M127 x 0.75 (Filter attaches to the lens hood.)

Approx Size

95 x 237.5mm( x Length)

Approx Mass

2.0kg (RM) / 2.07kg (RD) (without lens hood)
