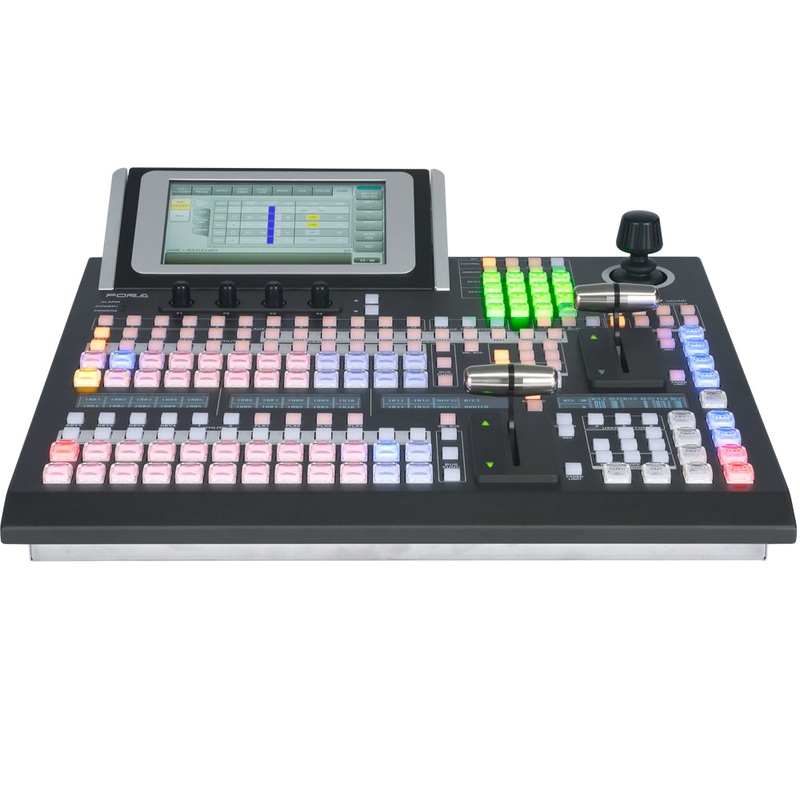

FOR.A HVS-1200 492 ROU Package 1.5 M/E 12G 4K/HD Vision Mixer Main Frame – HVS-1200 ROU Package

New 12G-SDI 1M/E switcher on the scene

This new switcher builds on the features of the HANABI HVS-100/110 and HVS-490 video switchers and adds 12G-SDI support as standard. One or two M/E switching (in 4K(UHD) and HD mode, respectively) is just the start. Enjoy two or six M/E performance in these modes thanks to FOR-As MELite technology. The compact, 3U form factor is exceedingly portable, making the HVS-1200 the perfect choice for mobile production or events.

Standard 12G-SDI support

10 12G-SDI inputs come standard on this compact unit. Use as a switcher in HD mode with 40 inputs and 2M/Es. Can be used mainly for HD switching while switching to 4K(UHD) as needed. Enjoy convenient operation in HD mode and smoother migration to a 4K(UHD) environment.

Ten standard inputs in 4K(UHD) mode

In 4K(UHD) mode, the switcher features 10 inputs and 10 outputs, including two outputs for HDMI 2.0 Level B. Mixed inputs of 12G-SDI and quad link 3G-SDI are supported. Two 3G-SDI I/Os for 29.97p/25p/24p/23.98p. In HD mode, 40 inputs and ten outputs are supported, including two outputs for HDMI 2.0 Level B.

Example of 4K system configuration
