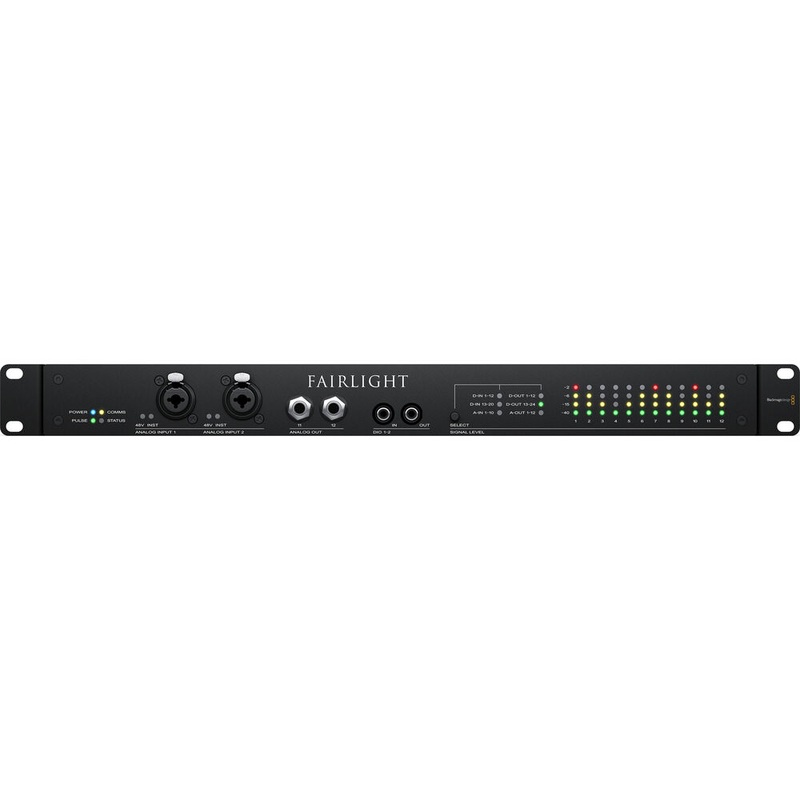

Fairlight Audio Interface – DV/RFL/AUDIF
Professional audio post production I/O interface
FEATURES
- For Postproduction Engineers
- Proprietary Fairlight Host Connectivity
- Inputs: 2 Mic/Hi-Z Pres, 8 Line, 20 AES
- Outputs: 12 Line, 24 AES
- 24-Bit / 192 kHz AD/DA Converters
- Internal Power Supply / Mac and Windows
- Phantom Power, Timecode and GPIO In/Out
- BNC Wordclock and Video Sync I/O
- RS-422 Machine Control I/O
- Multi-Segment Level Indicators
Fairlight Audio Interface is a professional audio post production I/O interface with an extensive variety of analog and digital inputs and outputs, preamps for microphones and instruments, built in sample rate conversion, sync at any standard frame rate and dual 9?pin control ports. Fairlight Audio Interface requires Fairlight Audio Accelerator and connects to the Fairlight Audio Interface with a supplied proprietary interface cable.
SPECIFICATIONS
General
| Display |
12x Multi-Segment LED Meter |
| Channels of I/O |
Analog:
10 Inputs / 12 Outputs
Digital:
20 Inputs / 24 Outputs |
| Maximum Sampling Rate |
192 kHz / 24-Bit |
| Number of Microphone Inputs |
2 |
| Input Level Adjustment |
2x via Software |
Signal Processing
| Pad |
No |
| Gain/Trim Range |
Mic Inputs:
+21.5 to +71.5 dB
Hi-Z Inputs:
+0 to +50 dB |
| High-Pass Filter |
No |
| Solo/Mute |
No |
Connectivity
| Analog Audio I/O |
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Hi-Z Input (Front Panel)
1x DB-25 25-Pin Balanced Line/8-Channel Input (AES 59/Tascam Pinout)
1x DB-25 25-Pin Balanced Line/8-Channel Output (AES 59/Tascam Pinout)
4x 1/4″ TRS Balanced Line Output |
| Phantom Power |
48 V, Selectable On/Off |
| Digital Audio I/O |
1x RCA Coaxial AES3 / S/PDIF Input
1x RCA Coaxial AES3 / S/PDIF Output
2x DB-25 AES3 In & Out (AES 59/Tascam Pinout) |
| Host Connection |
1x DVI-D (DL) |
| Host Connection Protocol |
Blackmagic Design Fairlight Proprietary |
| USB (Non-Host) |
No |
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output
1x BNC Video Sync Input
1x BNC Video Sync Output/Thru |
| Network I/O |
No |
| MIDI I/O |
1x DIN 5-Pin Input
1x DIN 5-Pin Output |
| Expansion Slots |
No |
| Other I/O |
1x DB-25 25-Pin GPIO In/Out
1x DE-9/DB-9 9-Pin Control Input
1x DE-9/DB-9 9-Pin Control Output |
Performance
| Frequency Response |
Inputs:
20 Hz to 20 kHz 0.05 dB
Outputs:
20 Hz to 20 kHz +0.05/-0.5 dB |
| Maximum Input Level |
Mic Inputs:
+2.5 dBu
Line/Hi-Z Inputs:
+24 dBu |
| Maximum Output Level |
Analog Outputs:
+24 dBu |
| Impedance |
Mic Inputs:
2 Kilohms
Hi-Z Inputs:
> 1 Megohm
Line Inputs:
15 Kilohms
Analog Outputs:
50 Ohms
BNC Inputs:
75 Ohms
BNC Inputs:
75 Ohms |
| Dynamic Range |
Combo XLR-1/4″ Inputs:
108 dB (Unweighted, Min Gain)
DB-25 Inputs:
110 dB (Unweighted)
Outputs:
109 dB (Unweighted) |
| THD+N |
Combo XLR-1/4″ Inputs:
0.001% (Unweighted, 1 kHz, Min Gain, at -1 dBFS)
DB-25 Inputs:
0.001% (Unweighted, 1 kHz)
Outputs:
0.002% |
| EIN |
Mic Inputs:
-127 dBu (150-Ohm Source, +40 dB Gain) |
Digital Audio
| Sample Rates |
44.1 / 48 / 96 / 192 kHz |
| Sample Rate Conversion |
On S/PDIF Inputs |
| Bit Depths |
24-Bit |
| Sync Sources |
AES3, Internal, S/PDIF, Word Clock |
Compatibility
| OS Compatibility |
macOS 10.15 or Later
Windows 10 (64-Bit Only) |
| Mobile Device Compatibility |
No |
Power
| Power Requirements |
AC Input |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
40 W |
Physical
| Rackmount Size |
1 RU |
| Operating Humidity |
0 to 90% |
| Operating Temperature |
32 to 104F / 0 to 40C |
| Storage Temperature |
-4 to 140F / -20 to 60C |
| Dimensions |
18.97 x 11 x 1.74″ / 48.18 x 27.9 x 4.42cm |
| Weight |
9.0lb / 4.1kg |
