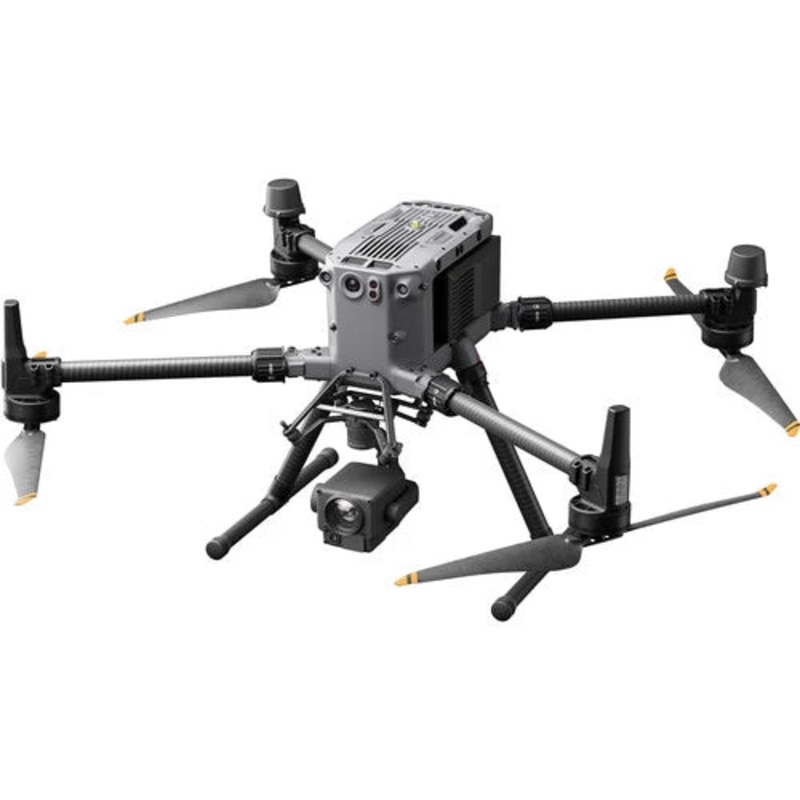

DJI Matrice 350 RTKOverview

Key Features

• Flight Batteries & Payload Not Included
• Up to 55 Minutes of Flight Time
• Multi-Payload Support
• 1 Year of Care Basic Coverage Included
• DJI RC Plus Controller Included
• 6-Direction Sensing & Avoidance
• Night-Vision FPV Camera
• High Wind, Heat, Cold & Water Resistance
• DJI O3 Enterprise Transmission
• Maximum Range of 12.4 Miles

From search and rescue to industrial inspections, theMatrice 350 RTK Commercial Drone with 1 Year of Care Basic CoveragefromDJIcan handle nearly any professional mission. The model of the Matrice 350 RTK is almost ready for flight, requiring the addition of two TB65 flight batteries for its dual-battery system and a payload gimbal camera (all not included). Out of the box is a drone that can handle harsh weather conditions, deliver stable, HD, and long-range data transmissions with O3 Enterprise, and intuitive flight control with the included DJI RC Plus controller. To help keep the drone running long-term, a host of enhanced flight safety features are built-in, and one year of Care Basic coverage is included.

Multi-Payload Support

With an E-Port open interface, the Matrice 350 RTK can support up to three simultaneous payloads. You can choose from single or dual downward gimbals or a single upward gimbal (no gimbals are included). Choose from a wide variety of DJI Zenmuse or third-party gimbal cameras.

Long Distance and Extreme Weather

The DJI Matrice 350 RTK is built to handle demanding professional missions in harsh environments. With O3 Enterprise transmission uses a four-antenna system for control and live data feeds up to 12.4 miles away. The motor of the drone is capable of horizontal speeds up to 52 mph. The frame of the drone can handle altitudes of up to 4.4 miles, winds up to 27 mph, and temperatures from a chilling -4 to a blistering 122F.

DJI O3 Enterprise Transmission

A four-antenna system on both the Matrice and RC Plus is used for long-range control and data transmission, as well as minimizing interference. The RC Plus intelligently selects the best 2 antennas for transmission, while all four antennas on the drone simultaneously receive signals. Once in flight, this system is capable of triple-channel 1080p live feeds and a maximum range of 12.4 miles.

RC Plus Controller

Included with the Matrice 350 RTK is an RC Plus controller with a 7″ bright, 1200-nit color display. It runs DJI Pilot 2 for the display of flight information and provides pilots with control over both the drone and optional payload. Control is made to be flexible and intuitive, with customizable buttons on the front, back, and top. If dedicated piloting and gimbal operation are needed, the remote supports dual operators.

Nearly as robust as the Matrice 350 RTK, the RC Plus is IP54 rated for significant dust and water resistance in harsh weather. The missions that you fly with the RC Plus can be highly sensitive, which is why DJI offers multiple data security methods, such as media data encryption, AES-256 video transmission encryption, a local data mode, one-tap clear all device data, and support for the Cloud API.

Enhanced Flight Safety

• Arm Lock Indicator: Arm lock detection will notify you on the controller display if any of the arms are unlocked, preventing you from taking off until they are all set in the locked position.
• Night-Vision FPV Camera: Working together with the PinPoint function, the night-vision camera can clearly display surrounding objects on the controller.
• Six-Directional Sensing and Positioning: The Matrice 350 RTK can sense objects in nearly every direction and avoid them automatically, thanks to a six-directional binocular vision system and infrared sensing system.
• Multilayered Redundancy Design: With redundant components in both the aircraft and sensor systems, flights are able to continue and objects are avoided if certain components fail in harsh operating environments.

Mission Capabilities

With various combinations of gimbal payloads and DJI software, the Matrice 350 RTK can perform a wide variety of mission types. Here are a few of the things the Matrice 350 RTK can accomplish.

• High-Precision Mapping: With a compatible payload camera and software, the Matrice 350 RTK can work together with DJI Terra to generate HD 2D and 3D maps. In addition to mapping, it can fly waypoint, oblique, and linear flight missions.
• Air-to-Ground Coordination: Using PinPoint, FlightHub 2, and the right payload, the Matrice 350 RTK can link air, ground, and cloud together. For example, after mission completion, data can be transmitted directly to flight and ground operators, as well as live streamed in real time.
• Automated Precision Inspection: With the right payload camera and AI Spot-Check, the Matrice 350 RTK can take the time-consuming complexity out of industrial inspections. Multiple flight routes can be stored and repeated, and subjects can be automatically framed with the ability for manual adjustment.

Customize with SDKs

Three different SDKs let you customize the abilities of the Matrice 350 RTK to suit your needs and support a wide variety of third-party devices and applications.

• Payload SDK: Integrate a variety of 3rd party payloads like gas detectors, loudspeakers, multispectral sensors, and more. Payload SDK supports E-Port, SkyPort V2, and DJI X-Port, which help reduce the payload development lifecycle and maximize the potential of your payloads.
• Mobile SDK: Supports highly customizable mobile app development, letting you use a wide range of third-party apps to unlock the potential of the M300 RTK.
• Cloud API: Connect the Matrice 350 RTK directly to third-party cloud platforms using the DJI Pilot 2 app, allowing you to access functions like data transfer, livestreaming, and flight route distribution.
