DEDOLIGHT NEO 20W DLED2 Daylight Neo+ System – SYS-DLED2N+D

FEATURES
DMX onboard all DTneo ballasts
Perfectly smooth linear or exponential dimming (user-selectable), with 16-bit advanced control via DMX/RDM protocol. Manual or DMX step-free dimming ranges from 0.1% to full power
Wireless control via CRMX LumenRadio and Bluetooth (DTneo+ model)
Auto-sense the connected light head and automatically adjust the electronic settings and menu display
Interchangeable attachments for DC battery or AC operation
NEO features a normal speed flicker-free mode, as well as a high-speed flicker-free mode up to 50,000fps
Simple, intuitive menu with an OLED display
Very power-efficient electronics
Future-proof thanks to the Firmware upgradeability
Mounting hardware slides into the rugged aluminium housing

The new dedolight “NEO” light system includes a DLED2N-D 20W daylight LED focusing light head, a DTneo+ control ballast (wireless version of the DTneo), DBDS8 barn door, DPLSS light shield ring and a 1.3 m head cable.

DLED2N-D Daylight Head
dedolight NEO DLED2N-D is the perfect balance of output strength and control. Like its predecessor, the DLED2-D, this light draws 20W of power from the DTneo+ ballast. You might have experienced open-faced LED lights that require a beam-shaping accessory to get a fixed angle of exit and change the beam size. Moving the light from the subject is often impractical, time-consuming and sometimes impossible in tight spaces. Dedolight LED focusing lights are just not that: straight out of the box the light has a manual focusing range of 50- 5 (1:10 light ratio). Think about zooming your light just like the Operator zooms the camera lens. Because you can set the exact beam size you want in seconds, delights are in a class of their own. If you know the DLED2 series well, the new dedolight NEO DLED2N has the same beam quality and output as its predecessor. The optical performance and functionalities are the same. The new dedolight Neo housing is shorter front to back as the chassis connector is relocated to the bottom. The back casing redesign cuts down light leaks even further. The DLED2N Neo light head is an incredible 30% shorter than the already compact DLED2. The DLED2N-D Neo head is compatible with all the Small size accessories of the DLED2-D.

DTNeo+ Ballast
This is where the dedolight NEO series truly separates itself from its predecessor. Gone are the days when you needed to choose between AC, AC+DMX or DC ballasts with the previous DLED series. The DTneo and DTneo+ (wireless option) offers all the functions you wanted in a single ballast and more. Starting with AC/DC operation, the DTneo is a DC ballast with a V-mount plate for battery operation. The optional AC adapter electronics are built inside a battery shell that looks like and snaps on exactly like a V-mount battery. DMX is now a standard feature in all DTNeo ballasts. Use the simple push/turn knob and OLED displayed menu to select between a deep, smooth “linear” or “exponential” dimming curve, or seamlessly change colour, without drifting- even below 10% output (0.1 to 100% dimming range). Take advantage of 1000-point 8-bit linear, or 16-bit advanced control (via DMX/RDM protocol). Select the high-speed setting to shoot up to 50,000 fps flicker-free. In direct tradition with Dedolight long-lasting equipment, the DTNeo ballast hardware and software are future-proof. The software is user upgradable via USB. The DTneo ballasts have an auto-detect feature to recognize and drive all the upcoming DLEDNeo light heads between 20W-90W. That’s not a typo. If you wish to invest for the future, all the NEO heads, including white, Infrared and Ultra-Violet, will all be controlled by the DTneo ballast, up to the Neo DLED9. To put it simply, the DTNeo ballast opens the world to an entirely new generation of light heads.

With the “DTneo+” version of the ballast, you are unlocking the ability to use wireless control via CRMX LumenRadio and Bluetooth.

SPECIFICATIONS

DLED2N-D Daylight Head
Colour temperature: Fixed 6500K
Power: Max power consumption 20W
Focus Control: 50- 5 (1:10 ratio) – Double helix focusing control, moves body and head away from one another with 3/4 turns
Cooling: Passive silent cooling
Mounting: Dual 5/8″ (16 mm) vertical or horizontal receptacles, or 1-1/8″ (28mm) stud
Operating Position: Any position
Accessory Holder: 2.3″ (58 mm) diameter
Tilt Control: Permanent friction
Safety: Protection Class III, SLEV, IP40
Weight: 800g (1.8 lb)
UV: No UV radiation

DTNeo+ Ballast
Dimming: Linear or Exponential curve settings, smooth continuous dimming and color changing from 0.1 – 100%
Max Power: 90W
Power Supply: Only use with 14.8 V battery, or DLPS15-100 AC/DC V-Mount adapter
Input Voltage: 5 V DC (12-18V)
Color Control: Continuous – 2700-6500K
Display: OLED Display screen
Size: 17.45 x 9.20 x 6.35 cm (6.87″ x 3.62″ x 2.5)
Weight: 570g (1.25lb)
DMX: XLR5 (DMX512-A) 8/16 Bit
Wireless: Bluetooth mesh / CRMX / RDM

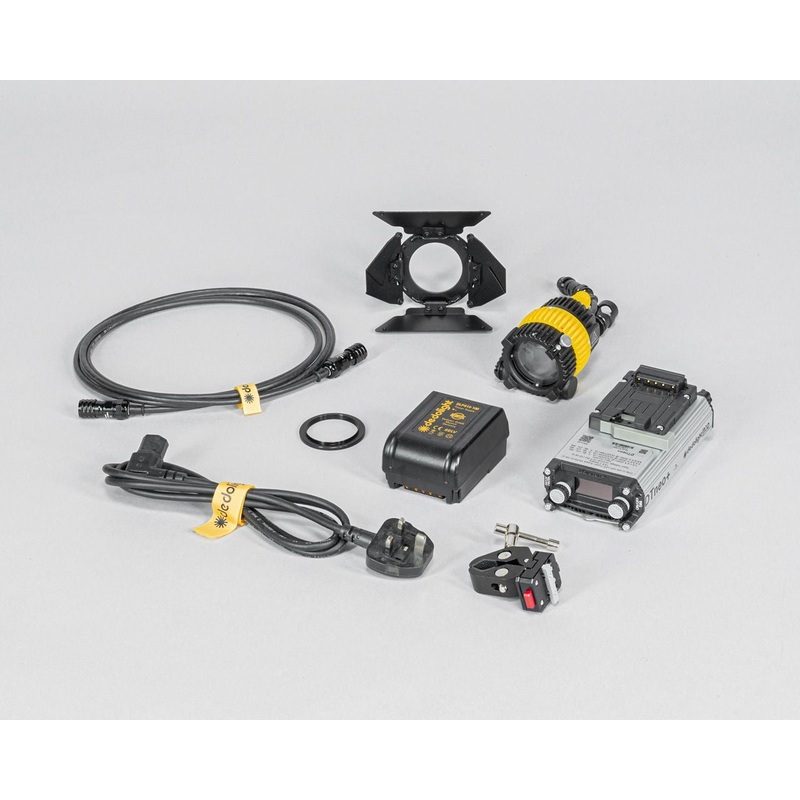

WHAT’S IN THE BOX
(x1) DLED2N-D Daylight Head
(x1) DTNeo+ Wireless Ballast
(x1) DPLS15-100 V-Lock Power Supply
(x1) DBDS8 Barndoors
(x1) DPLSS Light Shield Ring
(x1) DPOWN 1.3 Metre Cable
(x1) DTCHVM Mini V-Lock inc. Clamp
