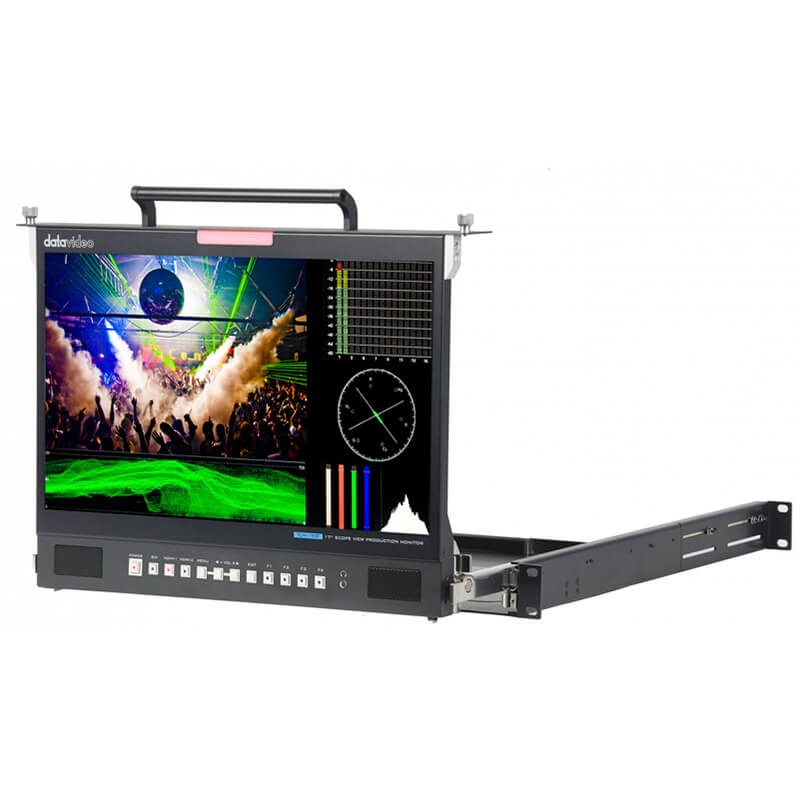

DATAVIDEO TLM-170FM Full HD 17-inch ScopeView Production Monitor 1U Foldable Rackmount – DATA-TLM170FM

FEATURES

17-inch ScopeView Production Monitor
Supports DCI P3 colour space 4K/60p and UHD 4K/60p video input and output
Supports Multiple Input and Output Configurations
1x 12G-SDI, 2x HDMI (HDMI 2.0) inputs
1x 12G-SDI loop-through, 1x HDMI (HDMI 2.0) loop-through
Supports column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more
Tally light included. Best use for live production

The TLM-170F is a desktop 17-inch 4K UHD LCD monitor which includes a Full HD 1920 x 1080px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and a 700:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.

The TLM-170F series has various professional and helpful monitoring features, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more. It also supports HDR for HLG and SMPTE 2084 and the presets of colour space include Rec 709 and DCI P3. The TLM-170F series are ideal for broadcast and live production applications.

RICH AND NATURAL COLOUR WITH HIGH BRIGHTNESS AND CONTRAST
The TLM-170F series apply a superior Full HD 1920 x 1080px IPS panel. The high brightness and high contrast panel provide rich colour, revealing subtle detail in bright highlights and dark shadows.
