Datavideo SE-1200MU 6 Input Rackmount HD Mixer – DATA-SE1200MU

FEATURES
6 video inputs ( SDI x 4 + HDMI x 2)
Frame Sync on each input
Flexible Mix/Effects Processor with
2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
2 DSK, supporting Linear & Luma Key Modes
1 PIP (assignable to any of the 4 keyers
Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
Wipe, Mix & Cut Transitions
Full M/E Preview function
Any Input (1-6) can be used as a Frame store (Stills Store): to 24 images stored on an SD Card
Assignable Outputs
Each SDI output can be switched in the Menu as:
– PROGRAM (w/ DSK)
– Clean PROGRAM (w/o DSK)
– Clean PREVIEW (w/o DSK)
– MULTISCREEN
– Input 1-6
XPT (Cross Point Assignment)
PC Control
Control Switcher via USB / Laptop keyboard
Control with optional RMC-260
Remote streaming of Multi-view out using built-in Motion JPEG Streaming processor
Tally output
GPI output
1U rack mount

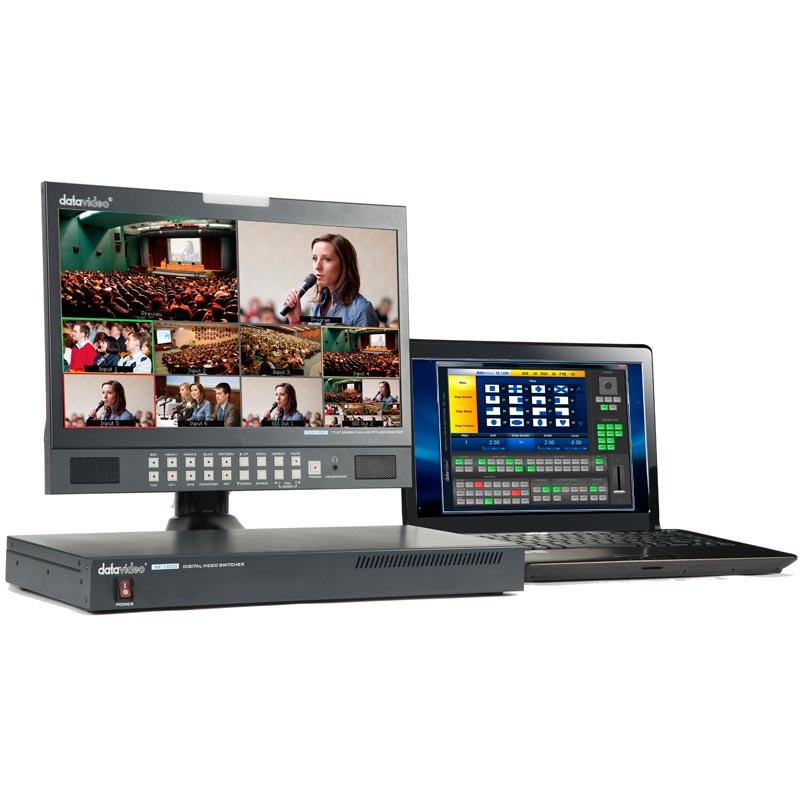

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.

SE-1200MU is a small, portable computer-controlled 1RU rack mountable switcher. It features a 6-channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid-production.

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.

SE-1200MU includes four SDI and two HDMI inputs with embedded audio and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint presentations.

Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and streaming encoder, plus two Balanced XLR audio inputs for connecting external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.

Users have the option to link a laptop to the switcher unit via USB, for a fast, secure connection. This gives plug-and-play control over all the functions of the mixer, with no need to configure the computer’s IP or network settings.
