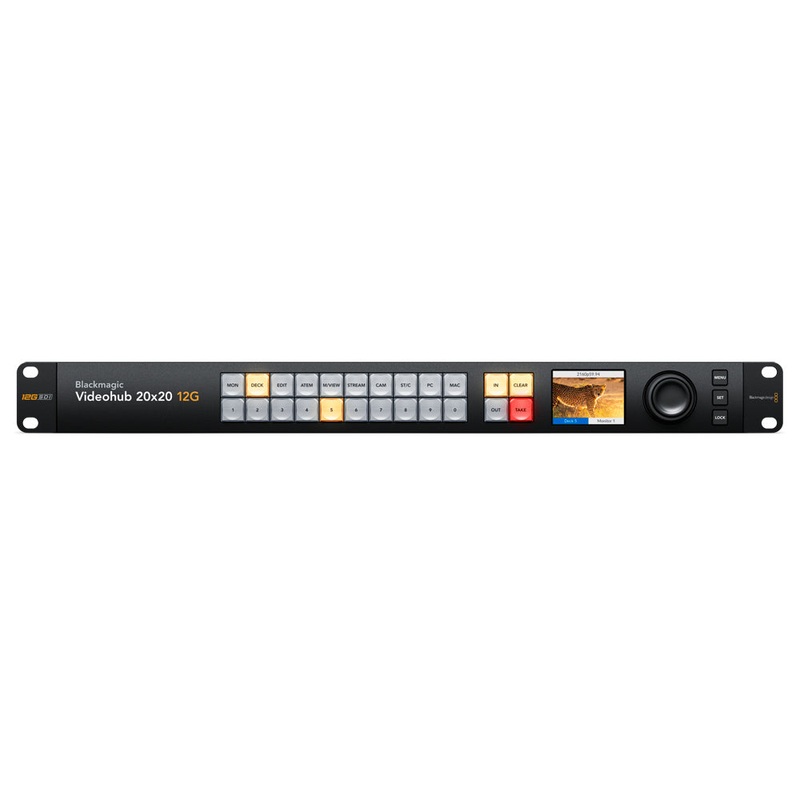

The new Blackmagic Videohub 12G-SDI video routers let you connect all your equipment without creating a complex cable mess! Blackmagic Videohub routers support 12G-SDI so they allow you to connect and route any combination of SD, HD and Ultra HD on the same router at the same time. Plus they have zero latency so are perfect for live production and broadcast! The design features an elegant front panel with LCD for labels and even live video, shortcut buttons and a machined metal spin knob with soft rubber coating that lets you browse video sources. Ethernet is also included so you can remotely control the router using a range of external hardware or software control panels.
| CONNECTIONS |
| SDI Video Inputs |
20 |
| SDI Video Outputs |
20 |
| SDI Rates |
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. |
| Video Input Re-Sync |
None |
| SDI Reclocking |
On all SDI outputs. |
| Reference Inputs |
Tri-Sync or Black Burst. |
| Reference Outputs |
Reference terminating loop output. |
| Ethernet |
Supports 10/100/1000 BASET. |
| Computer Interface |
USBC |
| STANDARDS |
| SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
| HD Video Standards |
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITUR BT.656 and ITUR BT.601 |
| SDI Audio Sampling |
Television standard sample rate of 48kHz and 24-bit. |
| SDI Video Sampling |
YUV 4:2:2 and RGB 4:4:4 |
| SDI Color Precision |
10, 12bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to
2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. |
| SDI Color Space |
REC 601, REC 709, REC 2020 |
| SDI Auto Switching |
Automatically selects between 270Mb SDSDI, 1.5G HDSDI, 3G level A and level B HDSDI, 6G HDSDI
12GSDI and DVBASI on each input so that each input can be running a different television standard. |
| SDI Metadata Support |
Video payload identification ancillary data as per SMPTE 352M. |
| CONTROL |
| Built in Control Panel |
24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display. |
| External Control Panel |
Includes Blackmagic Videohub software control panel for Mac and Windows
Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels
Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. |
| Control Panel Connection |
Ethernet |
| SOFTWARE |
| Software Control |
Router control included free for Windows and Mac |
| Internal Software Upgrade |
Via included updater application. |
| OPERATING SYSTEMS |
| Compatible with |
Mac 12.0 Monterey,
Mac 13.0 Ventura or later.
Windows 10, 64-bit.
Windows 11. |
| DISPLAY |
| Displays |
Built in 2.2 inch LCD for video and menu settings. |
| POWER REQUIREMENTS |
| Power Supply |
1 x Internal 100 – 240V AC 50/60Hz.
IEC power cable required. |
| Power Fail Protection |
Crosspoint connections preserved and restored instantly at power on. |
| Power Usage |
27.5 W max. |
| Physical Installation |
1 rack unit height. |
| PHYSICAL SPECIFICATIONS |
| Length |
482mm |
| Width |
236.14mm |
| Height |
44.2mm |
| ENVIRONMENTAL SPECIFICATIONS |
| Operating Temperature |
0 to 40 C (32 to 104 F) |
| Storage Temperature |
-20 to 60 C (-4 to 140 F) |
| Relative Humidity |
0% to 90% non-condensing |
| Warranty |
3 Year Limited Manufacturer’s Warranty, and 12 Month Warranty on the front panel. |
