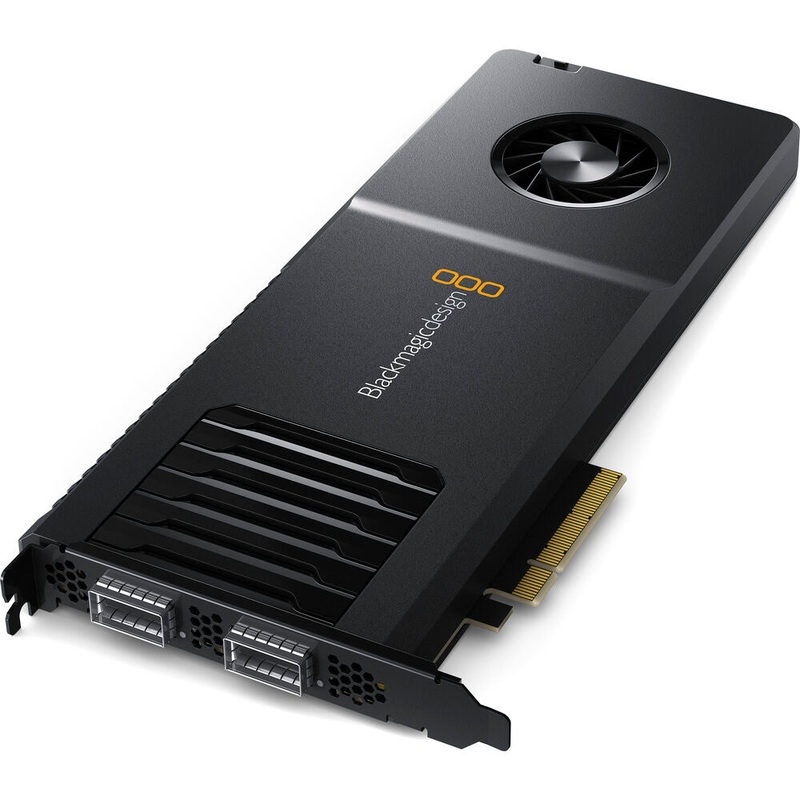

Blackmagic Design DeckLink IP 100G – BDLKIPHIP/100G

DeckLink IP100G

This fast model features 8channels of UltraHD video, in simultaneous capture and playback via 100G Ethernet. Italso features 2100G Ethernet QSFP ports, providing fullredundancy.

DeckLink IP 100G features 8 channels of Ultra HD video in simultaneous capture and playback to 2110 IP broadcast systems via dual QSFP28 optical fiber Ethernet connections for full redundancy. It is designed to work with the highest quality video with support for capture and playback to popular formats such as Apple ProRes, DNxHD and even 10-bit uncompressed. DeckLink IP 100G connections are multi-rate rate so they support all SD, HD and Ultra HD standards up to 2160p120.

Connections

100G Ethernet Ports

2x100Gb/s QSFP28connectors.

Computer Interface

PCI Express 8lane generation 4, compatible with 8and 16 lane PCI Expressslots.

Power

6-pin 2×3 auxiliary powerconnector.

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DVNTSC, DVPAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8bit 4:2:2, Uncompressed 10bit 4:2:2, Uncompressed 10bit4:4:4.

Software

Software Included

DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on MacOS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver onLinux.

Internal Software Upgrade

Firmware built into software driver. Loaded at system start or via updatersoftware.

Physical Installation

PCI Express 8lane generation 4, compatible with 8, 16 lane PCI Express slots on MacOS, Windows and Linux. Requires connection to computer power supply via 2×3 auxiliary power connector. Please check the Support pages to see the full systemrequirements.

Software Applications

DaVinci Resolve

Fusion

Final CutPro

Adobe PremierePro

Avid Media Composer

Adobe AfterEffects

Avid ProTools

Steinberg Cubase

Autodesk Flame

Adobe Photoshop

Other supported applications include: Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley EdiusX, Sony Catalyst Production Suite, Tools On Air Just: Play& Live& In, Softron MovieRecorder& MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro& Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio& Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class XLiveboard& Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch& Live Assist, Burst Video WebClip2Go& [REC]Marker, NewBlue Title Live& Titler Pro, SGO Mistika,Zoom.

These are third party applications and support may vary, check with your softwarevendor.

Video Standards

SD Video Standards

525i59.94 NTSC, 625i50PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120

2K Video Standards

2Kp23.98DCI, 2Kp24DCI, 2Kp25DCI, 2Kp29.97DCI, 2Kp30DCI, 2Kp47.95DCI, 2Kp48DCI, 2Kp50DCI, 2Kp59.94DCI, 2Kp60DCI, 2Kp95.90DCI, 2Kp96DCI, 2Kp100DCI, 2Kp119.88DCI, 2Kp120DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120

4K Video Standards

4Kp23.98DCI, 4Kp24DCI, 4Kp25DCI, 4Kp29.97DCI, 4Kp30DCI, 4Kp47.95DCI, 4Kp48DCI, 4Kp50DCI, 4Kp59.94DCI, 4Kp60DCI, 4Kp95.90DCI, 4Kp96DCI, 4Kp100DCI, 4Kp119.88DCI, 4Kp120DCI

Audio Sampling

Television standard sample rate of 48 kHz at24bit.

Color Precision

8, 10, 12-bit RGB 4:4:4 and 8, 10-but YUV 4:2:2: in allmodes.

Color Space

REC 601, REC 709, REC2020.

HDR Support

HDR static metadata packing, HLG and PQ transfercharacteristics.

IP Video Compliance

SMPTE 2110-20 (UncompressedVideo)

IGMP v2/v3

SMPTE 2110-21 (TrafficShaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (AncillaryData)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR staticmetadata.

SMPTE 2022-7 (Redundant streams)

Receiver class TBC

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Processing

Colorspace Conversion

Hardware based realtime.

Real Time Effects

DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internaleffects.

Physical Specifications

Operating Systems

Mac 14.0 Sonoma,
Mac 15.0 Sequoia orlater.

Windows 10, 64-bit.
Windows 11.

Linux

Power Requirements

Power Consumption

TBC

Environmental Specifications

Operating Temperature:

5 to 50C (41to122F)

Storage Temperature:

-20 to 60C (-4to140F)

Relative Humidity:

0% to 90% noncondensing

What’s Included

DeckLink IP 100G

Welcome wallet with QR code for softwaredownload

Warranty

3 Year Limited Manufacturers Warranty.
