Short Description1920 x 1080 Touchscreen Display
HDMI 2.0 Input/Output
Record up to 8K30 ProRes Raw
H.265 Codec Pre-Activated
10-Bit Exterior Viewable Monitor
1000 cd/m Brightness
AtomHDR Mode with 10-Stop Dynamic Range
Records to 2.5″ Mini or Standard SSDs
10-Bit 4:2:2 ProRes & DNxHR Encoding
Single Sony L-Series Battery Slot

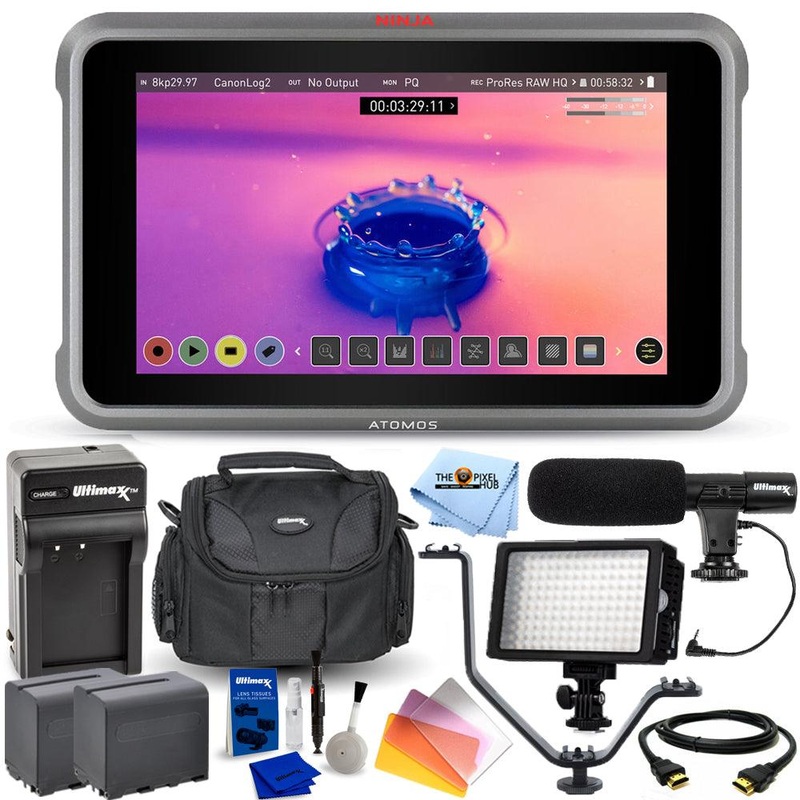

Kit Includes

1. Atomos Ninja V+ 5.2″ 8K HDMI H.265 Raw Recording Monitor
2. ULTIMAXX Travel Charger for Sony F970 / F975
3. ULTIMAXX Replacement battery for Sony F960/F970/F975 – 7800 mah x2
4. ULTIMAXX Professional 160 LED Video Light
5. ULTIMAXX Video Microphone
6. ULTIMAXX V Shaped Flash Bracket with 3 Cold Shoes
7. ULTIMAXX Medium Gadget Bag/Case
8. ULTIMAXX HDMI A-A (STANDARD)
9. ULTIMAXX Starter Kit Designed for DSLRs & Video Cameras with Memory Card Holder
10. ULTIMAXX Microfiber Cleaning Cloth

In The Box With The Main ItemAtomos Ninja V+ 5.2″ 8K HDMI H.265 Raw Recording Monitor
Master Caddy II
Battery Eliminator/Dummy Battery
Power Adapter
Neoprene Sleeve
Hard Case
Limited 1-Year Warranty

Long DescriptionIf you’re shooting with an 8K camera, then why not record in 8K raw format using the Ninja V+ 5.2″ 8K HDMI H.265 Raw Recording Monitor from Atomos. The Ninja V+ is the same on-camera monitor/recorder as its predecessor the Ninja V 5″, but the Ninja+ now features a 5.2″ display and records and plays back up to 8K raw video to and from purpose-built mini-SSDs.

The Ninja V+ can record Apple ProRes raw up to 8K30 or DCI 4K120 directly from the sensor, and it is compatible with select cameras such as the Canon R5. It also includes H.265 pre-activated to record with the high-quality, low-bandwidth codec for up to 10-bit recording in ProRes 4:2:2. Display features include a 10-bit screen with a brightness of 1000 cd/m AtomHDR technology for accurate monitoring of your log gamma footage, and support for popular log formats from Sony, ARRI, Canon, JVC, Panasonic, Nikon, RED, Sony, and Z CAM cameras.

Built to withstand the rigors of production, the Ninja V+ features an aluminum chassis and powers from a single L-series battery. Additional features include a variety of on-screen exposure analysis, framing, anamorphic de-squeeze, and focus assist tools. Separately available AtomX SDI, AtomX SYNC, Connect 4K modules, and an SDI Raw license key further expand your Ninja V+ capabilities.

New in the Ninja V+
A new chip supports higher frame rates and resolutions
ProRes raw recording over HDMI up to 4K120 with Z Cam E2 and E2-M4
ProRes raw recording over HDMI up to 8K30 with cameras such as the Canon R5 (more camera integrations coming from mid-2021)
H.265 Pre-Activated to provide 10-bit recordings in 4:2:2, 8-bit recordings in 4:2:2 and 4:2:0
XQ: Bit rates up to 350 Mb/s
MQ: Bit rates up to 200 Mb/s
LQ: Bit rates up to 100 Mb/s

5″ Daylight Viewable Screen
The Ninja V+ features a 5.2″ IPS LCD screen that is illuminated by a bright 1000 cd/m LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color-calibrated from the factory to ensure accurate image representation.

Recording Codecs Including Raw over HDMI
Record Apple ProRes and ProRes Raw with select cameras at rates up to 8K30 with select cameras and up to DCI 4K120
Enables ProRes Raw capture with smaller, more cost-effective, mirrorless cameras
Avid DNx compatibility enables wide camera and editing software compatibility

Bright 5.2″ Display with AtomHDR
Display ten+ stops of dynamic range of your camera’s log image with AtomHDR
1920 x 1080 display with 1000 cd/m brightness for daylight viewing
10-bit color processing and user calibration
Supports custom LUTs

DSLR and Mirrorless Camera Support
Compatible with virtually any HDMI source including cameras from:
ARRI, Canon, FUJIFILM, Nikon, Panasonic, RED, Olympus, Sony, and Z-CAM

8K30 and 4K120 Capabilities
Record 8K30 or DCI/UHD 4K ProRes raw at rates up to 120 fps, including 24 and 25 fps for a more filmlike aesthetic. All recordings are stored as high-quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit rates are available to fit your project and storage needs.

SSD Recording
Record to standard 2.5″ SSD drives or to compact AtomX SSDmini drives offering up to 2TB storage. SSDmini drives offer read speeds up to 550 MB/s and write speeds up to 500 MB/s, capturing up to 150 minutes of 4K video on a 1TB drive.

User Calibration
Calibrate with the separately available X-Rite i1 Display Pro tool to maintain optimal color accuracy.

Anamorphic De-Squeeze
The Ninja V+ supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with 2x, 1.5x, 1.33x, or Panasonic 8:3 ratios.

Selectable Markers
A wide variety of frame lines include standard versions plus 1:1, 4:5, 1:91:1, and 9:16 options.

Game Capture
Simple, standalone solution for UHD 4K, HDR, and high frame rate game capture and review.

Audio Input/Output
Input/output audio via HDMI or add external audio via the 3.5mm Line In/Mic In port; output audio using the 3.5mm headphone port for convenient audio monitoring.

Optional Expansion Modules
AtomX SDI Module for 12G-SDI input and output and HDMI/SDI cross conversion for up to 8K30 ProRes raw video
SDI Raw activation key
AtomX SYNC for wirelessly synced, timecoded multicamera capture
Atomos Connect 4K for HDMI to USB conversion for streaming up to 1080p60

Note:
SDI Raw is not supported on Sony FS700, F5, and FS5 cameras.

Supported Log Formats
ARRI Log C
Canon C-Log, C-Log 2
FUJIFILM F-Log
JVC J-Log
Nikon N-Log
Panasonic V-Log
RED LogFilm
Sony SLog2, SLog3

HDR Recording (Gamut)
ARRI Log CEI160, CEI200, CEI250, CEI320,
ARRI LogCEI400, CEI500, CEI640, CEI800
ARRI LogCEI1000, CEI1280, CEI1600
Canon C-Log, C-Log 2, C-Log3
FUJIFILM F-Log
HLG
JVC J-Log1
Nikon N-Log PQ10K
Panasonic V-Log
RED LogFilm, RG310, RG312
Sony SLog2, SLog3

HDR Monitoring (Gamma)
ARRI ALEXA Wide Gamut
BT.2020
Canon Cinema, DCI P3, DCI P3+, BT2020
JVC LS300
Nikon N-Log PQ10K
Panasonic V-Gamut
Rec. 709
RED DRAGONcolor, DRAGONcolor2
REDcolor2, REDcolor3, REDcolor4
REDWideGamut
Sony S-Gamut, S-Gamut3, S-Gamut3.Cine
Sony SLog2, SLog3

HDR Monitoring (Gamut)
ARRI ALEXA Wide Gamut (mapping to Rec. 709/BT.2020/DCI-P3 on loop-out)
BT.2020
Canon Cinema
DCI-P3, DCI-P3+
Panasonic V-Gamut
Rec. 709
RED DRAGONcolor, DRAGONcolor2
REDcolor2, REDcolor3, REDcolor4
REDWideGamut
Sony S-Gamut, S-Gamut3, S-Gamut3.Cine

Time-Lapse
Record a time-lapse video as a single file
Available in ProRes, DNx, and ProRes Raw over HDMI or SDI
Time-lapse sequence options include:
Number of frames/seconds captured
Intervals between frames/seconds/minutes/hours
Duration of sequence in frames/seconds/minutes/hours

Monitior Leica L-Log Gamma in BT2020 Gamut
Supports Leica SL 25 only
Support for other models available in future updates
