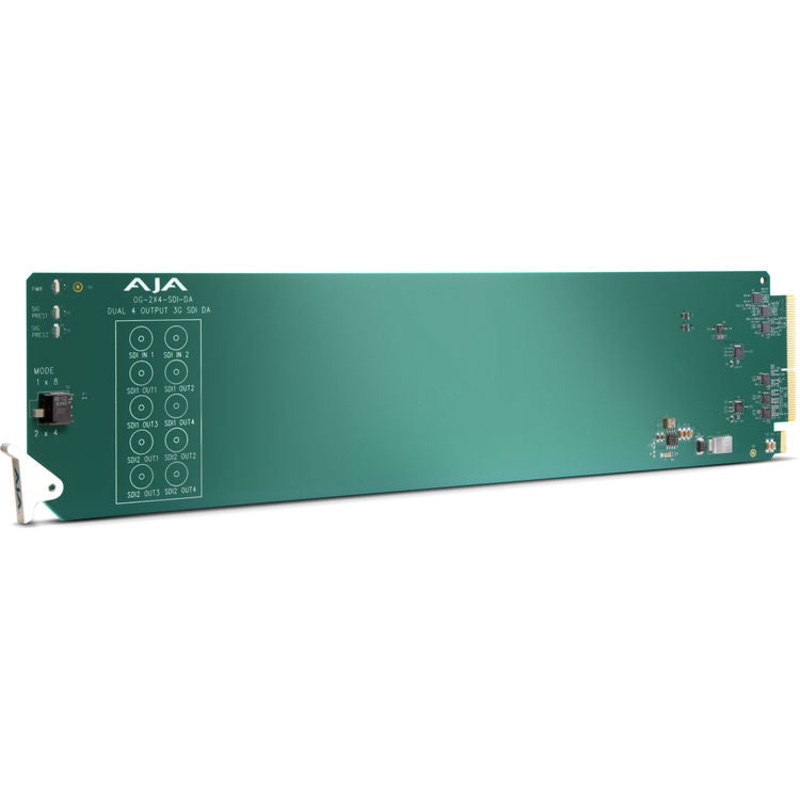

AJA OG-3GDA-2×4 openGear 2×4 3G-SDI reclocking DA

The OG-3GDA-2×4 is an openGear compatible, state of the art 3G-SDI distribution amplifier. The incoming 3G-SDI signals on the input channels are automatically equalized and the outputs are automatically reclocked to four 3G-SDI outputs each or alternatively can function as a 1x 8-channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability allows double the number of DAs in limited frame space. A 10x BNC rear connector module is included.

Designed for use in high density openGear 2RU frames including AJAs OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

FEATURES
Video Formats: 150 Mbps – 3 Gbps, format agnostic
Input: 1x 3G-SDI BNC (1×8 mode); 2x 3G-SDI BNC (2×4 mode)
Outputs: 8x 3G-SDI BNC
4 outputs noninverting (1×8 mode)
2 outputs noninverting (2×4 mode)
Support for HDR High Dynamic Range video
Monitor via openGear DashBoard
Passes embedded audio, all ancillary data including closed caption and time code
Input Present and Input SMPTE Lock LEDs
Automatic input equalization and output reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
Power: 2.6 watts max per card
Hot swappable
Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
